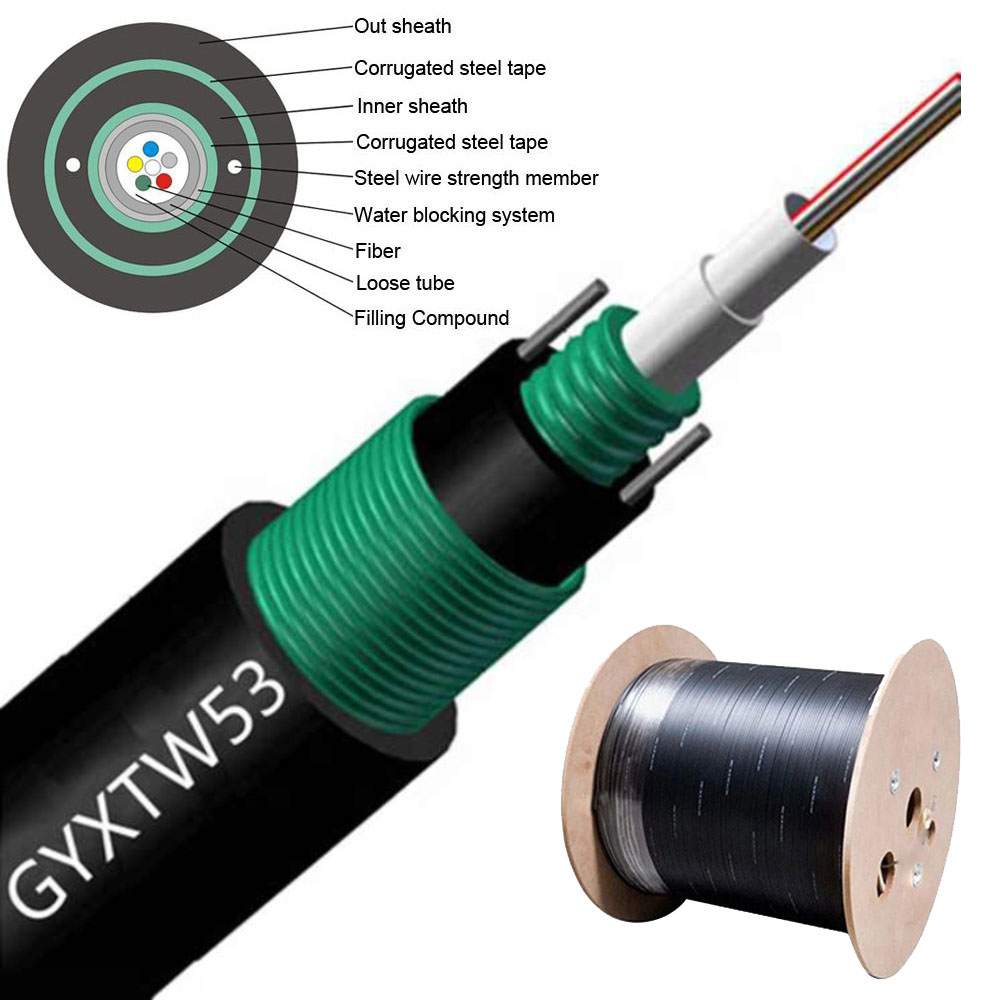

2 4 6 8 10 12 24 core outdoor optical fiber cable GYXTW53 Direct burial install Double Steel armored fiber optic cable
Short Description:
| Items | |
| Cable diameter | Weight |
| 2cores to 60cores | |
| 12.0±0.5mm | 145±5kg/km |
| Installation Temperature range | |
| -15--+60 | |
| Operation and transport temperature | |
| -40-+70 | |
| Min Bending Radius(mm) | |
| Long term | |
| 10D | |
| short term | |
| 20D | |
| Min. Allowable Crush Load (N/100mm) | |
| Long term | |
| 1500 | |
| short term | |
| 3000 | |
| Min allowable Tensile Strength(N) | |
| Long term | |
| 1000 | |
| short term | |
| 3000 |
