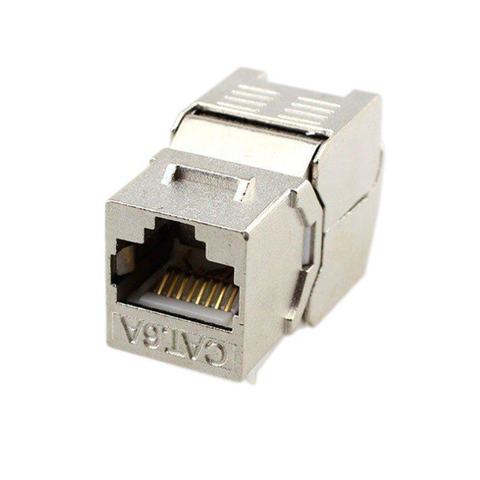

Manufacturer 90 degree UTP FTP RJ45 cat5e cat6 cat6A ethernet Keystone Jack
Short Description:
| The shell material | Zinc alloy |
| Housing material | PC |
| Insert material | ABS |
| PCB material | FR-4 t=1.6mm |
| Contact material | phosphor bronze stamp pin t=0.30mm |
| IDC contact material | phosphor bronze t=0.50mm with tin plating |
| rj45 jack | 750 times min |
| IDC Life | 200 ftimes min |
| Wire | AWG 22-26 |
| Gold plated | 3u/6u/15u/30u/50u |
| Voltage rating | 125 vac rms |
| Current rating | 1.5amp |
| Contact resistance | 100milliohms max |
| Dielectric strength | 750 vac rms 60hz,1min |
| Insulation resistance | 1000 megohms min @500 vdc |
| Storage | -40°to+85° |
| Operation | 0°to70° |
