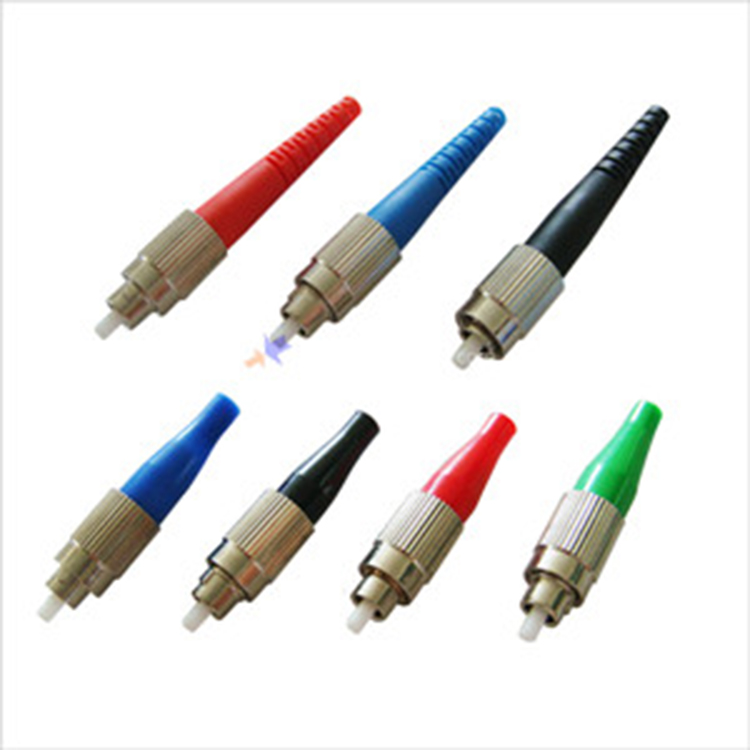

0.9mm 2.0mm 3.0mm Single mode Multimode APC UPC FC Fiber Connector sma905
Short Description:
| Single mode | Multimode |
| Insertion Loss | |
| <0.20dB | <0.30dB |
| Return Loss | |
| ≥55dB | |
| Durability | |
| <0.25dB typical change, 500 matings | |
| Operating Temperature | |
| -40 to +75 | -40 to +75 |
| Ferrule Hole Sizes | |
| 125.0+1/-0um,Conentricity:≤1um | 125um,Conectricity:≤3um |
| 125.3+1/-0um,Conentricity:≤1um | 127um,Conectricity:≤3um |
| 125.5+1/-0um,Conentricity:≤1um | 128um,Conectricity:≤3um |
| 126.0+1/-0um,Conentricity:≤1um |
