Smart 1625nm otdr exfo max 715b 1310/1550/1625 fiber optic cable drum test
Short Description:
| Model | |

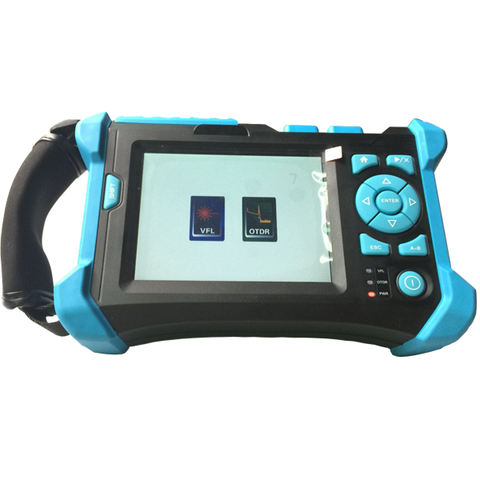

| WT-3304 Mini OTDR | |
| Operating Wavelength | |
| 1550nm(1310nm Optional) | |
| Fiber Type | |
| 9/125um SM Fiber | |
| Optical Connector Type | |
| FC/PC | |
| Detector Type | |
| InGaAs | |
| Peak Power of laser(mW) | |
| ≥60 | |
| Max.Distance | |
| Reflection Event | 60 (≥1dB) (km) |
| Non-reflection Event | 20 (≥2.5dB) (km) |
| Measurement Unit | |
| m | |
| Reflection Event Dead Zone(m) | |
| 15 | |
| Distance Accuracy(Reflection Event)(m) | |
| ± {2m+2*10(-3)*Distance(m) } | |
| VFL | |
| Wavelength(nm) | 650 |
| Output Power(mW) | >1 |
| Power Supply | |
| AA,3pcs | |
| Battery Operating Time | |
| Measurements | ≥5000 |
| Hours | >10 |
| Working Temperature(°C) | |
| -5~40 | |
| Storage Temperature(°C) | |
| -10~60 | |
| Humidity(%) | |
| 0~85(Non-condensation) | |
| Dimensions(mm) | |
| 190*100*5 | |
| Weight(g) | |
| 450 |
