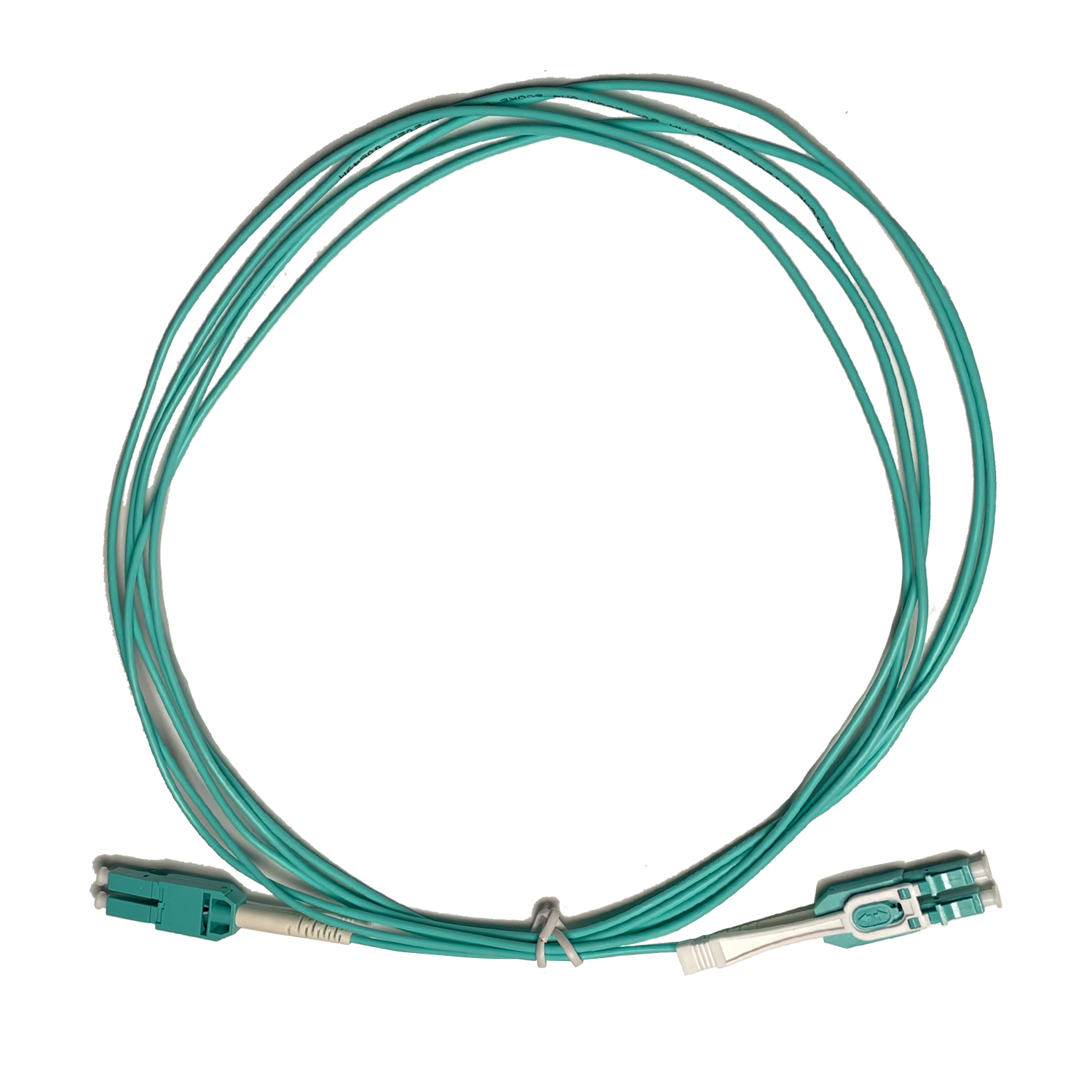

Push-Pull LC UPC Fiber Optic Uniboot patch cord With push pull tabs OM4 PVC 2.0mm 1M LC UPC Uniboot Patch Cord
Short Description:
| Test | |
| Conditions | Reference |
| Endurance | |
| 500 matings | IEC61300-2-2 |
| Vibration | |
| Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC61300-2-1 |
| Cable retention | |
| 100N (patch cable); | IEC61300-2-4 |
| Strength of coupling mechanism | |
| 80N for 2 to 3mm cable | IEC61300-2-6 |
| Cable torsion | |
| 15N for 2 to 3mm cable | IEC61300-2-5 |
| Fall | |
| 10 drops, 1m drop height | IEC61300-2-12 |
| Static lateral load | |
| 1N for 1h (patch cable); | IEC61300-2-42 |
| Cold | |
| -25°C, 96h duration | IEC61300-2-17 |
| Dry heat | |
| +70°C, 96h duration | IEC61300-2-18 |
| Change of temperature | |
| -25°C to +70°C, 12 cycles | IEC61300-2-22 |
| Humidity | |
| +40°C at 93%, 96h duration | IEC61300-2-19 |
