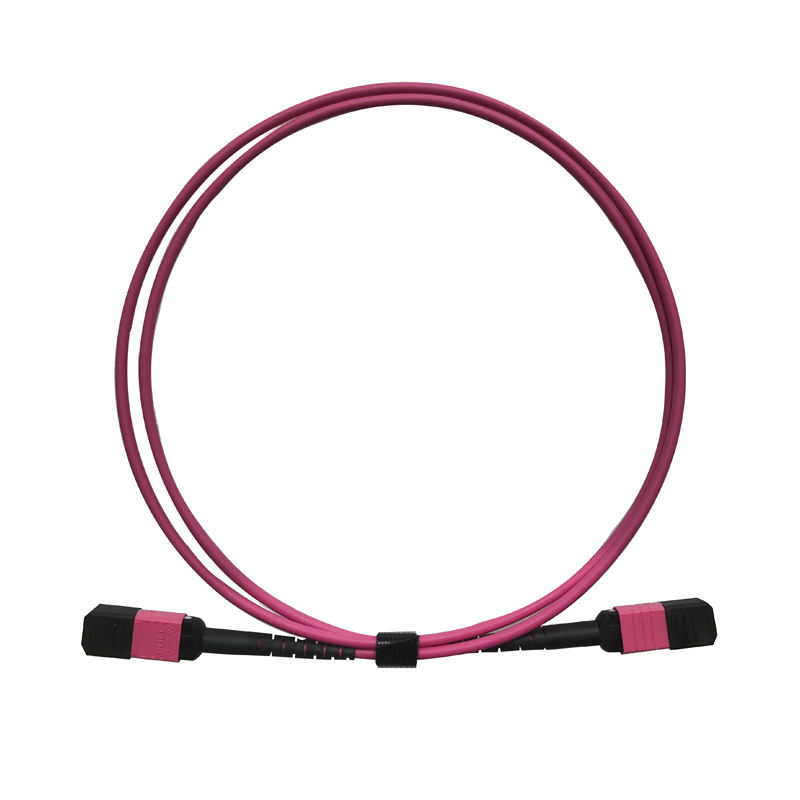

8 12 24 core om3 om4 fiber optic mtp mpo patch cord cable for QSFP
Short Description:
| Items | |
| Single mode | Multimode |
| PC | |
| UPC | |
| APC | |
| 62.5/125 | |
| 50/125 | 50/125 10G |
| Insertion Loss | |
| <0.2dB | <0.3dB |
| Return Loss | |
| ≥45dB | |
| ≥50dB | |
| ≥60dB | ≥35dB |
| Durability | <0.1dB typical change,500 matings |
| Operating Temperature | |
| -40 to +75°C | -40 to +75°C |
| Ferrule Hole Sizes | |
| 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um |
| 125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um |
| 125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um |
| 126.0+1/-0um, Conentricity:≤1um |
