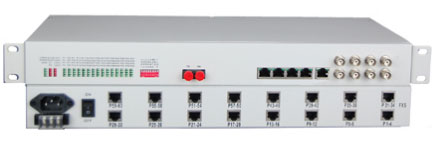

60 Channel telephone 1-4Channel E1 interface, 4Channel 10M/100M Ethernet interface (Line Speed 100M) and 4 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M)..
Specification
Product features:
This device provides Based on self -copyright IC
E1 interface comply with G.703, adopts digital clock recovery and smooth
phase-lock technology Voice port supports FXO and FXS port,
Voice port supports FXO port and FXS ports, EM2 / 4 audio interface,
magneto telephone interface;
FXO port and docking PBX connected to FXS port and the user's phone;
Voice FXO/FXS access, supports caller ID feature and reverse polarity
billing functions
Support various sites mutual number allocation function
Provide 4 expansion interface, you can extend 1~4Channel asynchronous
data, such as RS232/RS485/RS422/Manchester code;
1~4Channel voice, 1~8Channel switch or two/four line audio and so on
Ethernet interface supports10M/100M, half/full duplex auto- adaptable,
support VLAN
4Channel Ethernet interface is switch interface, support VLAN, can set
to 4 channel logical isolation
Ethernet interface can support AUTO-MDIX (crossed line and straightly
connected line self-adaptable)
The transmission distance is up to 2-120Km without interruption
AC 220V, DC-48V, DC24V can be optional.
Technology parameter
Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,
attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation
(0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Ethernet interface(100/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
Solutions
.
Model
HYM-5616:16 channel FXS/FXO
