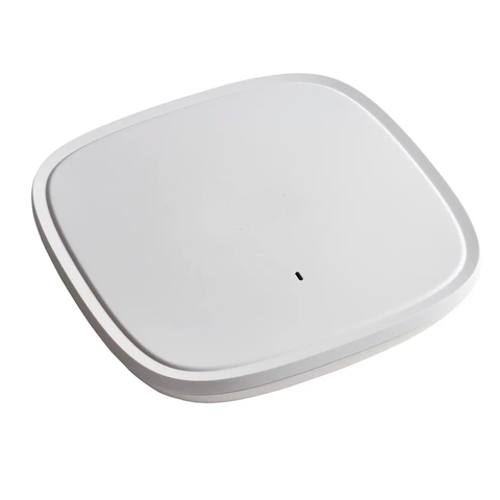

Original Cis co C9115AXI-A Catalyst 9100 Series Wi-Fi 6 Enterprise Access Points
Short Description:
| Description | Catalyst 9115AX Series Access Point, Internal antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain |
| Software | Unified Wireless Network Software Release 8.9 or later IOS ® XE Software Release 16.11 or later |
| Supported wireless LAN controllers | Catalyst 9800 Series Wireless Controllers 3500, 5520, and 8540 Series Wireless Controllers and Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | 4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| 802.11ac | 4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support |
| 802.11ax | 4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support |
| Integrated antenna | 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios |
| Interfaces | 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x20.3 x 4.3 cm) |
| Input power requirements | 802.3at Power over Ethernet Plus (PoE+), 802.3bt Universal PoE ( UPOE+, UPOE ®) power injector, AIR-PWRINJ6= 802.3af PoE power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1Gigabit Ethernet. In addition, the USB port will be off. |
| Environmental | Catalyst 9115AXI Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25C, 15,000 ft. Operating temperature: 32° to 122°F (0° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40C, 9843 ft.Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.Catalyst 9115AXE Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40C, 9843 ft. |
| System memory | 2048 MB DRAM 1024 MB flash |
