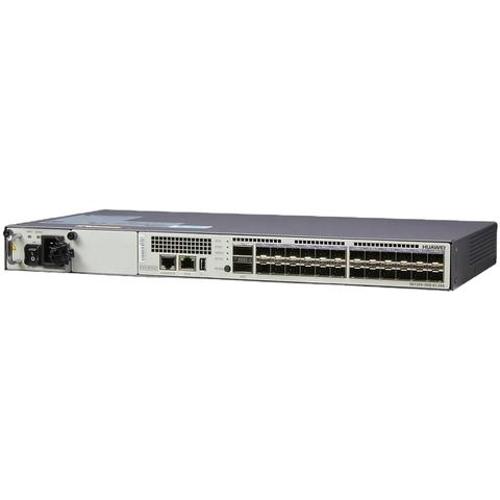

Huawei S6720S-26Q-EI-24S-AC S6720-EI 10g Switch Brand New
Short Description:
| Item | |
| S6720-30C-EI-24S-AC S6720-30C-EI-24S-DC | |
| S6720-54C-EI-48S-AC S6720-54C-EI-48S-DC | S6720S-26Q-EI-24S-AC S6720S-26Q-EI-24S-DC |
| Fixed Port | |
| 24×10GE SFP+ , 2×40GE QSFP+ ports | |
| 48 ×10GE SFP+ , 2×40GE QSFP+ ports | 24×10GE SFP+ , 2×40GE QSFP+ ports |
| Extended slot | |
| One extended slot for 4×40GE QSFP+ interface card | |
| One extended slot for 4×40GE QSFP+ interface card | Not supported |
| MAC address table | 288k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ |
| IPv4 routing | Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy |
| IPv6 routing | Static route RIPng OSPFv3 BGP4+ ISISv6 |
| IPv6 features | Neighbor Discovery (ND) PMTU IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping |
| multicast | Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN |
