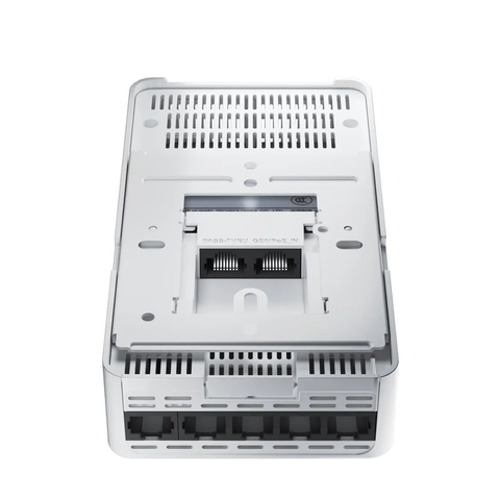

AirEngine 5761S-10W 802.11ax Wireless Wall Plate Access Point for HW
Short Description:
| Parameters | AirEngine 5761S-10W |
| Dimensions (H x W x D) | 38mm×86mm×160mm |
| Power Input | DC: 46–57 V |
| PoE power supply: In compliance with 802.3at/af | |
| Note: When 802.3af power is supplied, the USB port and PSE are disabled. | |
| Maximum Power Consumption | 13.1 W (excluding USB, PoE out) |
| Note: The actual maximum power consumption depends on local laws and regulations. | |
| Maximum Number of Users | ≤ 1024 |
| Note: The actual number of users varies according to the environment. | |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2x2:2; 5 GHz: 2x2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 1.775 Gbit/s |
