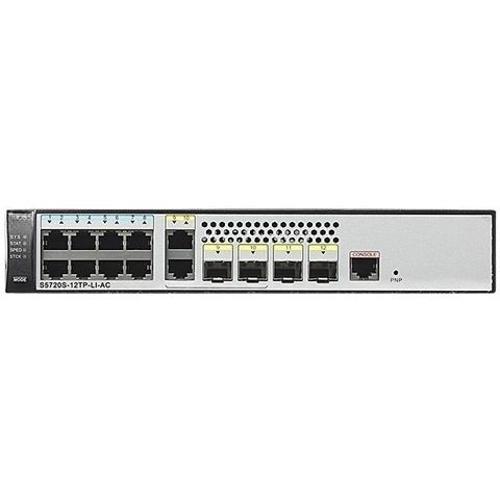

S5720S-12TP-LI-AC 8 Ports Ethernet Switch
Short Description:
| Memory (RAM) | 512 MB |
| Flash | 240 MB |
| Mean time between failures (MTBF) | 23.8 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (W x D x H) | 250.0 mm x 180.0 mm x 43.6 mm (9.8 in. x 7.1 in. x 1.72 in.) |
| Weight (including packaging materials) | 1.8 kg (3.97 lb) |
| Stack ports | Eight 10/100/1000BASE-T ports and two 1000BASE-X ports |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput) | 12.85 W |
| Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 10.39 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The operating temperature of the switch is 0°C to 40°C (32°F to 104°F) when it uses GE SFP optical modules with 40 km transmission distances. |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Part number | 98010568 |
