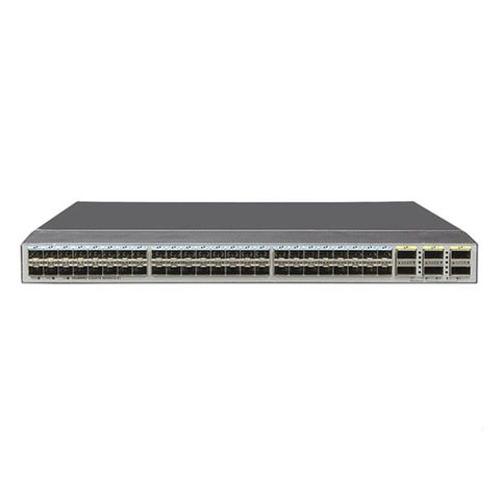

Huawei CloudEngine Switch CE6870-48S6CQ-EI-A 48-Port 10GE SFP+ 6-Port 100GE QSFP28
Short Description:
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight without packaging [kg (lb)] | 6.2kg (13.67 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.3 kg (18.30 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.) |
| Weight with packaging [kg (lb)] | 9.1 kg (20.06 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 11.1 kg (24.5 lb) |
| Installation Type | Cabinet installation |
| CPU | Quad-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power supply mode | AC DC HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48*10GE SFP+ (Such ports can be used as GE SFP optical/electrical ports, and do not support 10GE LRM/80 km linear optical modules. GE copper modules cannot be installed in ports directly above or below another GE copper module.) |
| Uplink Service interface | 6*100GE QSFP28 (Each 100G QSFP28 port can be configured to work at 40 Gbit/s, and can be split into four 10GE or 25GE ports. After split, they cannot be used as GE ports. Auto-negotiation of 25GE copper cables is not supported.) |
| Service port supporting the stack function | 10GE and 100GE optical ports |
| RTC | Supported |
| Typical power consumption [W] | 142 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 159 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | 485 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 543 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 117 W |
| Static heat dissipation [BTU/hour] | 399 BTU/hour |
| Maximum power consumption [W] | 209 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 323 W (100% traffic load, long-distance optical modules on all ports, 40°C, dual AC power modules) |
| Maximum heat dissipation | 713 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1102 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
| Input voltage range [V] | 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC |
| Maximum input current [A] | 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A |
| Rated output power [W] | 600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W |
| Certification | Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | Supports 3+1 backup. Fan modules work in hot backup mode. If a fan module fails, the system can still work properly for a short period of time. However, you are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules |
| Availability | 0.9999936017 |
| MTBF [year] | 34.43 years |
| MTTR [hour] | 1.93 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Port-side air intake: < 50.8 dB(A) Port-side air exhaust: < 50.5 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Port-side air intake: < 66.8 dB(A) Port-side air exhaust: < 66.7 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
