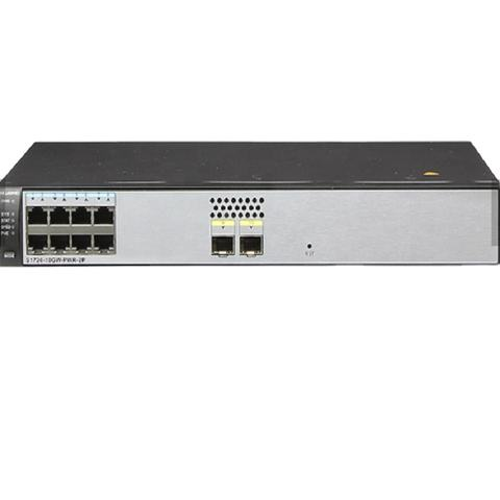

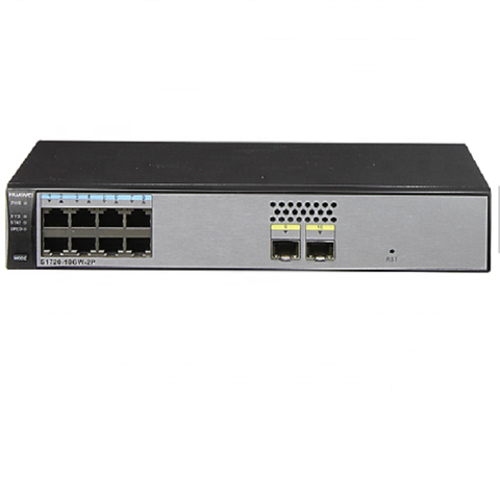

Huawei S1720-10GW-2P-E S1700 Series Fully-managed S1720 Switch
Short Description:
| Model | |
| S1720-10GW-2P-ES1720-10GW-PWR-2P-E | S1720-28GWR-4P-ES1720-28GWR-PWR-4P-E |
| Downlink Ports | |
| 8 Ethernet 10/100/1,000 ports | 24 Ethernet 10/100/1,000 ports |
| Uplink Ports | |
| 2 Gig SFP | 4 Gig SFP |
| MAC Address Table | 16K MAC |
| Routing Feature | Static routing, RIP, RIPng, OSPF |
| Dimensions (W x D x H) | |
| S1720-10GW-2P-E:250 mm x 180 mm x 43.6 mmS1720-10GW-PWR-2P-E:320 mm x 220 mm x 43.6 mm | S1720-28GWR-4P-E:442 mm x 220 mm x 43.6 mmS1720-28GWR-PWR-4P-E:442 mm x 310 mm x 43.6 mm |
| Input Voltage | 100V to 240V AC, 50 Hz/60 Hz |
| EEE | Supported |
| Power Consumption | |
| S1720-10GW-2P-E: 11.86WS1720-10GW-PWR-2P-E:Without PD: 14.63WWith PD: 159.2W (PoE: 123.2W) | S1720-28GWR-4P-E: 20.2WS1720-28GWR-PWR-4P-E:Without PD: 40.4W With PD: 446.7W (PoE: 369.6W) |
| Operating Temperature | 0m to 1,800m: 0°C to 45°C1,800m to 5,000m: Decreases 1°C for every 200m increase in altitude |
| Humidity (non-condensing) | 5% to 95% |
| Heat Dissipation | S1720-28GWR-PWR-4P: Heat dissipation using fans supporting intelligent speed adjustmentOther models: Fan-free natural heat dissipation |
