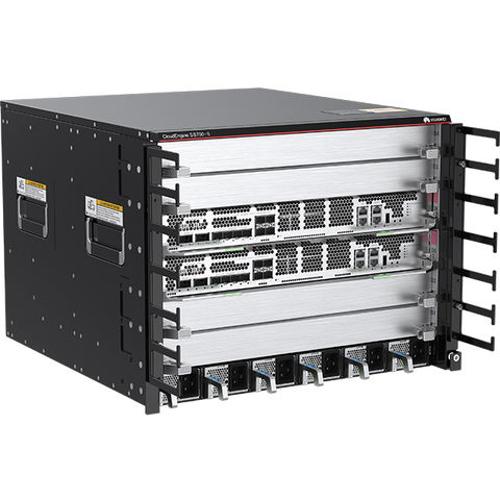

Huawei modular access Switch CloudEngine S8700-6
Short Description:
| Dimensions without packaging (H x W x D) [mm(in.)] | 352.8 mm x 442.0 mm x 482.8 mm (13.89 in. x 17.4 in. x 19.01 in.), dimensions of the chassis body, excluding mounting ears 352.8 mm x 482.6 mm x 585.0 mm (13.89 in. x 19 in. x 23.03 in.), including mounting ears and cable management frames |
| Chassis height [U] | 8 U |
| Cabinet installation standards | A66E |
| Weight without packaging [kg(lb)] | 27.04 kg (59.61 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 64.24 kg (141.65 lb) |
| Maximum power consumption [W] | 1560 W (full configuration, without PoE) |
| Maximum heat dissipation [BTU/hour] | 5322.94 BTU/hour |
| MTBF [year] | 32.04 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999928743 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤69.0dB(A) @AC 2500 W N+N power supply ≤ 78.0 dB(A)@AC 2500 W N+1 power supply ≤ 78.0 dB(A)@AC 2500 W N+0 power supply ≤ 73.8 dB(A) @DC 2200 W N+1 power supply In N+0 power supply mode, it is recommended that the DC power output load do not exceed 1780 W. Otherwise, the noise may exceed 78 dB(A). NOTE: In V600R021C10 and later versions, 2200 W DC power modules are supported. V600R021C10 and later versions support N+N configuration of AC power modules. In V600R021C10 and later versions, the 3000 W capability of the AC power module (2500 W/3000 W AC&240 V DC power module) can be enabled using a command. When the power consumption of a single power module exceeds 2500 W, the noise may exceed 72 dB(A) in different power module configurations. |
| Number of MPU slots | 2 |
| Number of service board slots | 4 |
| Number of power slots | 6 |
| Number of fans modules | 2 |
| Redundant MPUs | The control unit and switching unit work in hot standby (1:1) mode. |
| Redundant power supply | Dual-power input: The N+0 and N+1 modes are supported. The N+1 mode is recommended. Single-power input: The N+0, N+1, and N+N modes are supported. The N+1 mode is recommended. |
| Redundant fans | Fan modules work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
