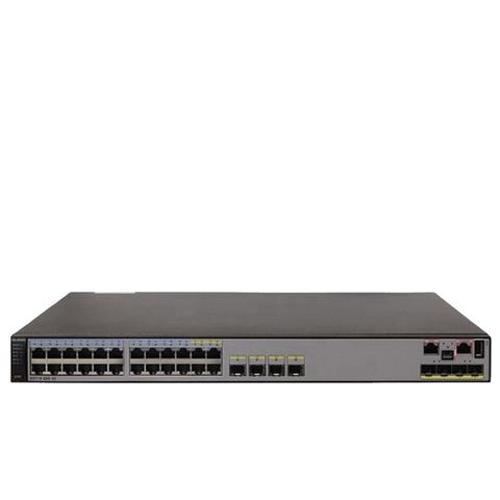

Huawei S5710-28C-EI 24 Port Gigabit Ethernet Switch
Short Description:
| Specifications | |
| S5710-28C-EI | S5710-28C-PWR-EI-AC |
| Switching Capacity | |
| 416 Gbit/s | 416 Gbit/s |
| Forwarding Performance | |
| 156 Mpps | 156 Mpps |
| Fixed Ports | |
| 24 x 10/100/1,000 Base-T, two GE SFP combo ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1,000 Base-T, two GE SFP combo ports, 4 x 10 GE SFP+ ports |
| Extended Slots | The S5710C series switch provides two extended slots that support uplink sub-cards |
| MAC Address Table | IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses 32K MAC |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
| Access Security | DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI |
| Management and Maintenance | Intelligent stacking (iStack) Virtual cable test SNMP v1/v2c/v3 eSight and web-based NMS Auto-config HTTPS System logs and multi-level alarms Remote network monitoring (RMON) NetStream (supported by the S5710-EI) sFlow |
| VLAN | 4K VLANS Guest VLAN and voice VLAN GVRP MUX VLAN Super VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| Ring Network Protection | STP, RSTP, and MSTP RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) BPDU protection, root protection, and loop protection BPDU tunnel |
| Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 Enhanced Trunk (E-Trunk) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM DLDP LACP |
| IP Routing | Static route Layer 3 dynamic route |
