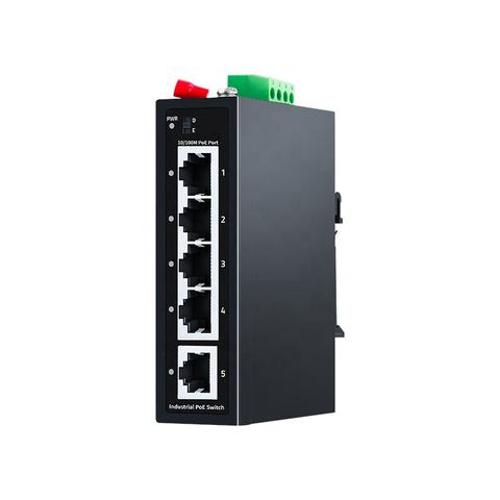

Industrial Gigabit POE Switch 4 Port 100Mbps RJ45 POE Port 1 Port 100M Uplink DIN Network POE Switch Lightning Protection
Short Description:
| Power | DC48-55V |
| Ethernet Port | 4*10/100M PoE Port1*10/100M Ethernet Port |
| Bandwidth | 1.0Gbps |
| PackageForwarding Rate | 0.744Mpps |
| MAC Address | 1K |
| Package cache | 448K |
| Jumbo frame | 1536bytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 HOURS |
| Network Protocols | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3x (Flow Control) |
| POE protocol | IEEE802.3af (15.4W)IEEE802.3at (30W) |
| Industrial Standard | EMI:FCC Part 15 CISPR (EN55032) class AEMS:EN61000-4-2 (ESD)EN61000-4-4 (EFT)EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T:Cat 3, 4, 5 or above UTP(≤100 meter)100BASE-TX:Cat 5 or above UTP (≤100 meter) |
| Safety Certificate | CE, FCC, RoHS |
| WorkingEnvironment | Working Temperature:-40~75°CStorage Temperature:-40~85°C Working Humidity :10%~90%,non-condensingStorage Temperature:5%~90%,non-condensing |
| LED Indicator | PWR(Power Indicate),1-5 Green LED(Link & Data) |
| PWR | On: Power onOff: Power off |
| 1-5 Green LED(Link& Data) | On:ConnectingFlashing:Data TransmitOff:Disconnect |
| Dimension | Product Dimension:100*76.5*30mmPackage Dimension:175*130*55mmN.W:0.29 KGG.W:0.38 KG |
| Packaging Info | carton MEAS:540*290*375mmPacking Qty:40 PCSPacking Weight: 16.2 KG |
| Power Voltage | Input Voltage : DC 48-55 VType of input: 4 PIN Industrial Terminal (block V1+V1- V2+ V2-);DC IN (2.1mm) (DC 2.1 cannot be used together with V1 and V2) |
| Package List | Industrial Switch:1 PCUser Manual:1PCCertification:1PCPull-arm:1 PC |
