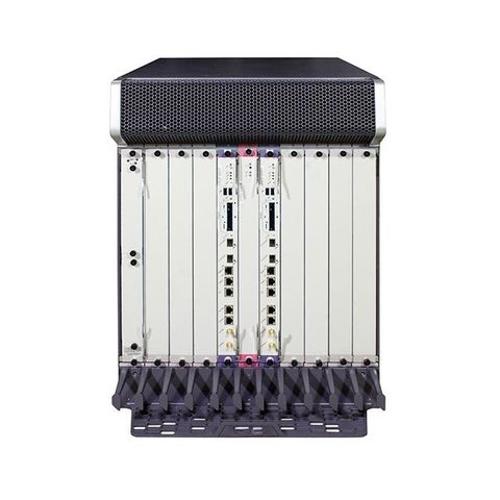

NE40E Series Universal Service Routers NE40E-X8
Short Description:
| Switching Capacity | |
| 12.58 Tbps | |
| 7.08 Tbps | 1.08T bps |
| Forwarding Performance | |
| 3200 Mpps | |
| 1600 Mpps | 300 Mpps |
| Number of Slots | |
| 22 slots, including 2 MPUs(1:1 backup), 4 SFUs(3+1 backup), and 16 LPUs | |
| 11 slots, including 2 SRUs(1:1 backup), 1 SFUs(2+1 backup), and 8 LPUs | 5 slots, including 2 MPUs(1:1 backup) and 3 LPUs |
| Dimension (W×D×H) | |
| 442mm × 650mm × 1420mm (32 U) | |
| 442mm × 650mm × 620mm (14 U) | 442mm × 650 mm × 175mm (DC 4 U)442mm × 650 mm × 220mm (AC 5 U) |
| Maximum power consumption | |
| 5360 W (40 G)6500 W (100 G) | |
| 2800 W (40 G)3300 W (100 G) | 1100 W |
| Weight in full configuration | |
| 267 kg | |
| 130 kg | 41 kg (DC)51 kg (AC) |
