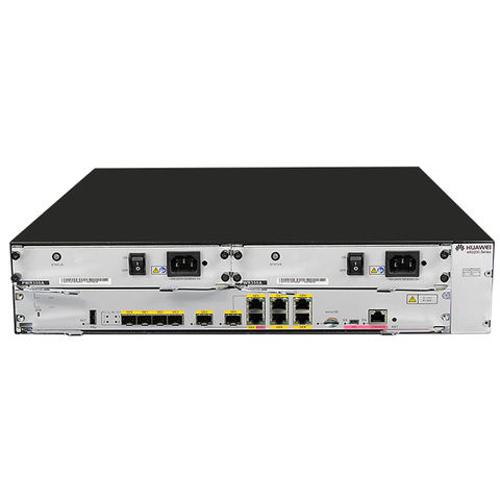

Huawei AR2200 Series AR2240 Router Port supports GPON EPON xDSL E1 T1
Short Description:
| Item | |
| AR2220 | |
| AR2220E | AR2240 |
| WAN Speed with Services | |
| 400 Mbit/s | |
| 800 Mbit/s | 600 Mbit/s (with SRU40) 1,800 Mbit/s (with SRU80) 4.5 Gbit/s (with SRU200) |
| Firewall Performance (large packets) | |
| 1.9 Gbit/s | |
| 3 Gbit/s | 5.5 Gbit/s (with SRU40) 9.5 Gbit/s (with SRU80) 15 Gbit/s (with SRU200) |
| Device Switching Capacity | |
| 32 Gbit/s | |
| 32 Gbit/s | 80 Gbit/s |
| Slot Switching Bandwidth | |
| SIC slots 1 & 3: 2 Gbit/s, SIC slots 2 & 4: 5 Gbit/s, WSIC slots: 5 Gbit/s, XSIC & EXSIC slots: 20 Gbit/s | |
| SIC slots 1 & 3: 2 Gbit/s, SIC slots 2 & 4: 5 Gbit/s, WSIC slots: 5 Gbit/s, XSIC & EXSIC slots: 20 Gbit/s | SIC slots: 2 Gbit/s, WSIC slots: 5 Gbit/s, XSIC & EXSIC slots: 20 Gbit/s |
| Fixed WAN Ports | |
| 3 x GE (1 x Combo port) | |
| 3 x GE (1 x Combo port) | 3 x GE (2 x Combo)/4 x GE Combo + 2 x 10 GE |
| SIC Slots | |
| 4 | |
| 4 | |
| 4 | |
| WSIC Slots (default/max**) | |
| 2/4 | |
| 2/4 | |
| 2/4 | |
| XSIC Slots (default/max**) | |
| 0/2 | |
| 0/2 | 2/4 |
| EXSIC Slots (shared with XSIC slots) | |
| 0 | |
| 0 | 1 |
| DSP Slots | |
| 1 | |
| 2 | 0/3 |
| Mini-USB Ports | |
| 1 | |
| 1 | |
| 1 | |
| Serial Auxiliary/Console Ports | |
| 1 | |
| 1 | |
| 1 | |
| Memory | |
| 2 GB | |
| 1 GB | 2 GB/8 GB |
| Flash Memory (default/max**) | |
| 2 GB/4 GB | |
| 2 GB/4 GB | |
| 2 GB/4 GB | |
| Maximum Power | |
| 150W | |
| 150W | 350W (single power module), 700W (dual power module) |
| AC Power | |
| 100V to 240V | |
| 100V to 240V | |
| 100V to 240V | |
| Frequency | |
| 50/60 Hz | |
| 50 Hz/60 Hz | |
| 50/60 Hz | |
| DC Power | |
| -48V to -60V | |
| - | |
| -48V to -60V | |
| Dimensions (H x W x D) | |
| 1.8 in. x 17.4 in. x 16.5 in. (44.5 mm x 442 mm x 420 mm) | |
| 1.8 in. x 17.4 in. x 16.5 in. (44.5 mm x 442 mm x 420 mm) | 3.5 in. x 17.4 in. x 18.5 in. (88.1 mm x 442 mm x 470 mm) |
| Weight | |
| 10.9 lb. (4.95 kg) without power module and interface card | |
| 10.9 lb. (4.95 kg) without power module and interface card | 19.7 lb. (8.95 kg) without power module and interface card |
| Ambient Temperature | |
| 32oF to 113oF (0o to 45°C) | |
| 32oF to 113oF (0o to 45°C) | |
| 32oF to 113oF (0o to 45°C) | |
| Relative Humidity | |
| 5% to 95% (non-condensing) | |
| 5% to 95% (non-condensing) | |
| 5% to 95% (non-condensing) | |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC |
| 3G | CDMA 2000EV-DO Rev A, WCDMA, and individual 3G uplink/backup link |
| LTE | FDD LTE: Uplink: 50 Mbit/s, Downlink: 100 Mbit/s |
| WLAN (AC) | AP management (AC discovery/AP access /AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
