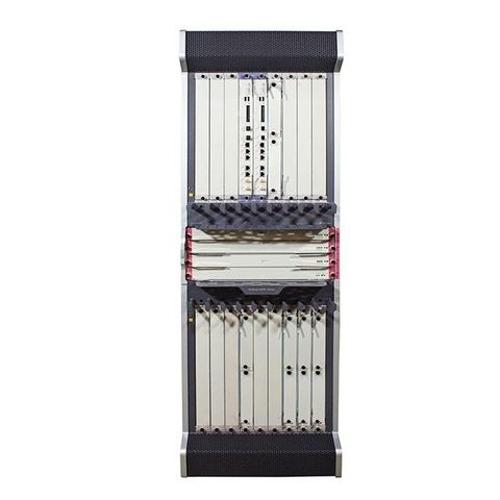

NE40E-X16A router wireless
Short Description:
| Switching Capacity | |
| 50.32 Tbit/s | |
| 12.58 Tbit/s | |
| 25.16 Tbit/s | |
| 7.08 Tbit/s | |
| 2.79 Tbit/s | |
| 1.08 Tbit/s | 960G |
| Forwarding Performance | |
| 11,520 Mpps | |
| 5,760 Mpps | |
| 5,760 Mpps | |
| 2,880 Mpps | |
| 900 Mpps | |
| 360 Mpps | 330 Mpps |
| Number of Slots | |
| 22 slots, including2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | |
| 22 slots, including2 MPUs (1:1 backup), 4 SFUs(3+1 backup), and 16 LPUs | |
| 12 slots, including2 SRUs (1:1 backup), 2 SFUs(3+1 backup), and 8 LPUs | |
| 11 slots, including2 SRUs (1:1 backup), 1 SFUs(2+1 backup), and 8 LPUs | |
| 5 slots (for 3 LPUs and 2 MPUs) | |
| 5 slots (for 3 LPUs and 2 MPUs) | 5 slots (for 2 LPUs and 1 fixed MPU) |
| Dimensions(W x D x H) | |
| 442 mm x 650 mm x 1,778 mm (40U) | |
| 442 mm x 650 mm x 1,420 mm (32U) | |
| 442 mm x 650 mm x 934 mm (21U) | |
| 442 mm x 650 mm x 620 mm (14U) | |
| 442 mm x 664 mm x 264 mm (6U) | |
| 442 mm x 650 mm x 175 mm (DC, 4U);442 mm x 650 mm x 220 mm (AC, 5U) | 442 mm x 220 mm x 89 mm (2U) |
| Power Consumption(in full configuration) | |
| 9,040W (480G) | |
| 4,610W (120G)7,970W (240G) | |
| 4,770W (480G) | |
| 2,340W (120G)4,100W (240G) | |
| 600W (200G) | |
| 1,070W (AC)920W (DC) | 537W (AC)499W (DC) |
| Weight (in full configuration) | |
| 356 kg (480G) | |
| 246 kg (120G)279 kg (240G) | |
| 186 kg (480G) | |
| 119 kg (120G)136 kg (240G) | |
| 75 kg (200G) | |
| 42 kg (DC)52 kg (AC) | 11 kg (DC)12 kg (AC) |
| Interface Types | 100 GE/40 GE 10 GE-LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1 |
