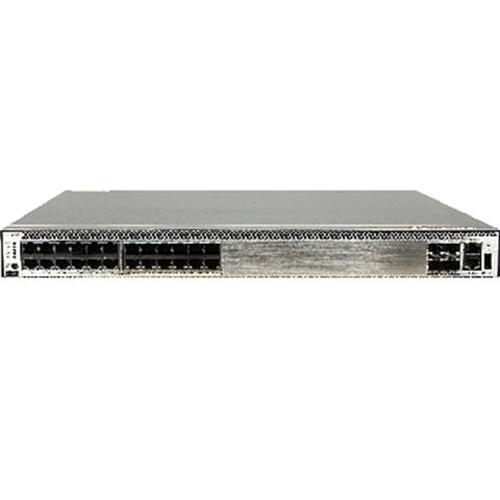

CloudEngine 24 Ports Switch S5731-S24T4X Support 10G Uplink
Short Description:
| Product Model | |
| CloudEngine S5731-S24T4XCloudEngine S5731-S24T4X-ACloudEngine S5731-S24T4X-D | |
| CloudEngine S5731-S48T4XCloudEngine S5731-S48T4X-A | CloudEngine S5731-S24P4X |
| Forwarding Performance | |
| 96 mpps | |
| 125 mpps | 96 mpps |
| Switching Capacity2 | |
| 128/672 Gbit/s | |
| 176/672 Gbit/s | 128/672 Gbit/s |
| Fixed Ports | |
| 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | |
| 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ |
| PoE+ | |
| Not supported | |
| Not supported | Supported |
| MAC Features | 64,000 MAC entriesMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN Features | 4094 VLANsGuest VLAN, voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mapping |
| SVF | Plug-and-play SVF clientAutomatic software and patch loading to clientsOne-click and automatic delivery of service configurationsIndependent client operations |
| VXLAN | VXLAN L2 and L3 gatewaysCentralized and distributed gatewaysBGP-EVPNConfigured through the NETCONF protocol |
