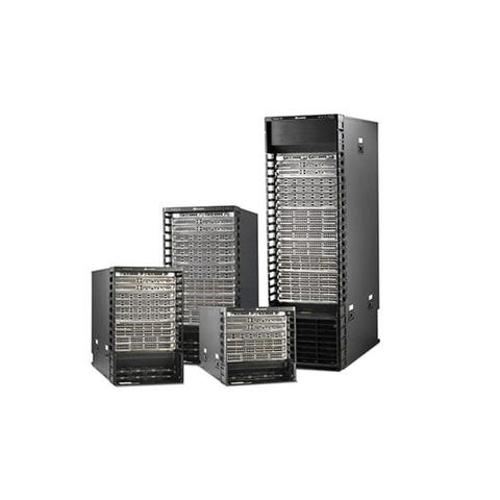

Huawei CloudEngine 12800 CE12804S assembly chassis 10G Ethernet Fiber Switch
Short Description:
| Switching capacity | |
| 16/40 Tbit/s | |
| 32/80 Tbit/s | |
| 48/120 Tbit/s | 64/160 Tbit/s |
| Forwarding performance | |
| 7,200 Mpps | |
| 14,400 Mpps | |
| 21,600 Mpps | 28,800 Mpps |
| Service slots | |
| 4 | |
| 8 | |
| 12 | 16 |
| Switching fabric module slots | |
| 6 | |
| 6 | |
| 6 | |
| 6 | |
| Fabric architecture | Orthogonal, Clos architecture |
| Airflow design | Strict front-to-back |
| Device virtualization | Virtual System (VS) |
| Network virtualization | TRILL |
| VM awareness | nCenter |
| Network convergence | FCoE |
| Data center interconnection | EVN |
| SDN | OPS, virtualized hardware gateway |
| Traffic analysis | NetStream |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| MAC address | Dynamic learning and aging of MAC addresses |
| IP routing | IPv4 dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP |
| IPv6 | IPv6 Neighbor Discovery (ND) |
| Multicast | IGMP, PIM-SM, MSDP, MBGP |
| MPLS | Basic MPLS functions |
| Reliability | LACP |
| QoS | Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information |
| Configuration and maintenance | Console, Telnet, and SSH terminals |
| Security and management | 802.1x authentication |
| Dimensions (W x D x H) | |
| 442 mm x 970 mm x 486.15 mm (11 U) | |
| 442 mm x 970 mm x 752.85 mm (17 U) | |
| 442 mm x 970 mm x 975.1 mm (22 U) | 442 mm x 1065 mm x 1597.4 mm (36 U) |
| Chassis weight (empty) | |
| < 110 kg | |
| < 150 kg | |
| < 190 kg | < 290 kg |
| Operating voltage | AC: 90 V to 290 V DC: -38.4 V to -72 V |
| Maximum power supply | |
| 5400 W | |
| 10800 W | |
| 16200 W | 27000 W |
