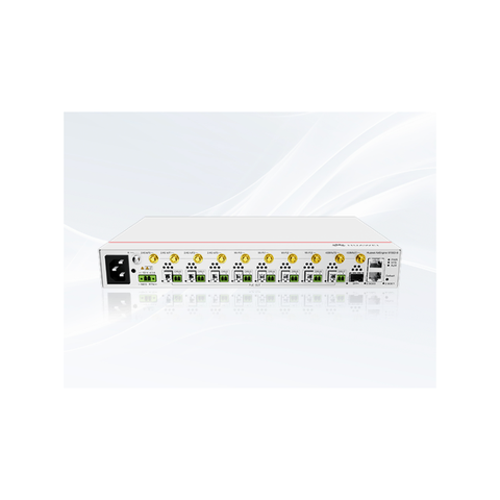

HW AirEngine 9700D-S Wi-Fi 6 (802.11ax) Distributed Access Point
Short Description:
| Parameters | AirEngine 9700D-S |
| Dimensions (H x W x D) | 43.6 mm x 320 mm x 210 mm |
| Power Input | AC: 100 V to 240 V; 50/60 Hz |
| DC: 50 V to 57 V (backup) | |
| Ports | Uplink: 1 x 10GE optical port + 2 x 2.5GE electrical ports |
| Downlink: 8 x Hybrid ports (for radio signal output) | |
| 4 x Wi-Fi SMA ports + 6 x IoT SMA ports | |
| Maximum Power Consumption | 178W (when it supplies PoE power to eight connected ORUs) |
| Operating Temperature | –10°C to +50°C |
| MIMO:Spatial Streams | 2.4 GHz: 4x4:4; 5 GHz: 8x8:8 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Wi-Fi Maximum Rate | 10.75 Gbps |
