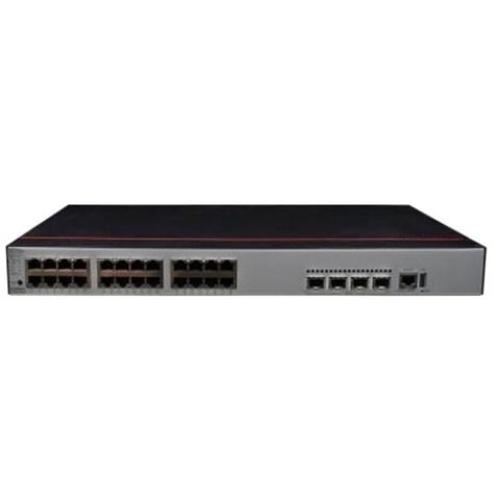

CloudEngine S5735-L-Q Series 24 Ports Quiet Switch S5735-L24T4S-QA1
Short Description:
| Product Model | |
| CloudEngine S5735-L24T4S-QA1 | CloudEngine S5735-L24T4X-QA1 |
| Forwarding Performance | |
| 42 Mpps | 96 Mpps |
| Switching Capacity | |
| 56 Gbit/s / 336 Gbit/s | 128 Gbit/s / 336 Gbit/s |
| Fixed Ports | |
| 24 x 10/100/1000BASE-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1000BASE-T Ethernet ports, 4 x 10GE SFP+ ports, and one USB port |
| PoE+ | CloudEngine S5735-L8T4S-QA1: not supportedCloudEngine S5735-L8P4S-QA1: supportedCloudEngine S5735-L24T4S-QA1: not supportedCloudEngine S5735-L24T4X-QA1: not supported |
| MAC Features | Limiting the number of MAC addresses learned by an interfaceAutomatic MAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN Features | 4094 VLANsGuest VLAN, Voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clientAutomatic software package and patch loading to SVF clientsOne-click and automatic delivery of service configurationsIndependent SVF client running |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST)LNP (similar to DTP)VCMP (similar to VTP) |
