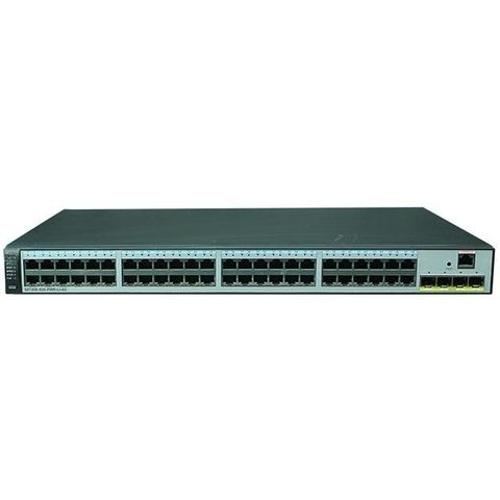

S5720S-52X-PWR-LI-AC 48 Ports Gigabit Ethernet Switch
Short Description:
| roduct Model | |
| S5720S-12TP-LI-ACS5720S-12TP-PWR-LI-AC | |
| S5720S-28P-LI-AC S5720S-28P-PWR-LI-ACS5720S-28TP-PWR-LI-ACL | |
| S5720S-28X-LI-AC S5720S-28X-PWR-LI-AC | |
| S5720S-28X-LI-24S-AC | |
| S5720S-52P-LI-AC S5720S-52P-PWR-LI-AC | S5720S-52X-LI-AC S5720S-52X-PWR-LI-AC |
| Switching Capacity | 336 Gbit/s |
| Forwarding Performance | |
| 22.5 Mpps | |
| P series: 51 MppsTP model: 46.5 Mpps | |
| 108 Mpps | |
| 108 Mpps | |
| 87 Mpps | 144 Mpps |
| Fixed Ports | |
| 8 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP | |
| P series: 24 x 10/100/1,000 Base-T, 4 x Gig SFPTP modle: 24 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP | |
| 24 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | |
| 24 x Gig SFP, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+ | |
| 48 x 10/100/1,000 Base-T, 4 x Gig SFP | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ |
| MAC Address Table | 8k MAC address entriesMAC address learning and agingStatic, dynamic, and black hole MAC address entriesPacket filtering based on source MAC addressesInterface-based MAC learning limiting |
| VLAN Features | 4094 VLANsGuest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng |
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)Link-type Negotiation Protocol (LNP) (similar to DTP)VLAN Central Management Protocol (VCMP) (similar to VTP)For detailed interoperability certifications and test reports, click HERE. |
| SVF | Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running |
