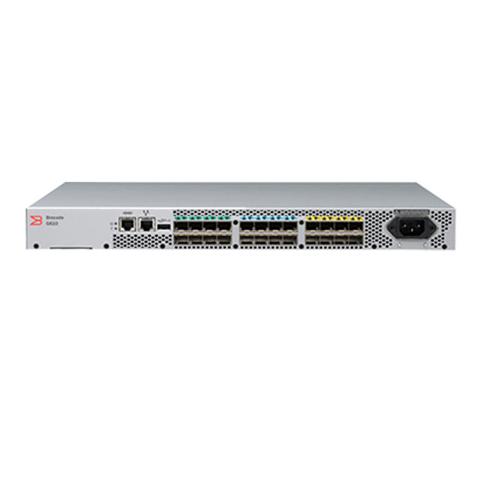

Brocade G610 24-Port 32Gb Fibre Channel SAN Switch BR-G610-8-32G-0
Short Description:
| Specification | Value |
| Lifecycle | Active |
| Access Gateway | Supports |
| Bandwidth | 768 Gb/s |
| Certified Maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Fibre Channel Performance | Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/sline speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds |
| FICON Support | Not available |
| Frame Based ISL Trunking | 256Gb/s frame-based trunk (optional) |
| Power Text | 76.52W, single, fixed power supply |
| Size (mm) | 428.8(W) x 42.9(H) x 306.6(D) |
| Total Line Rate Ports | 8 to 24 @ 32G |
