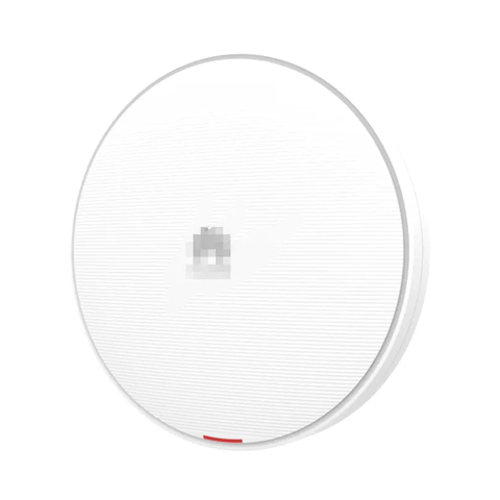

HW AirEngine 6761-21 indoor Wi-Fi 6 (802.11ax) Access Points (APs)
Short Description:
| Parameters | AirEngine 6761-21 & 6761-21E Access Points |
| Dimensions (Diameter x Height) | Φ220 x 53 mm |
| Power Input | DC: 43.2–57.6 V |
| PoE power supply: In compliance with 802.3at | |
| Maximum Power Consumption | 22 W (excluding USB) |
| Note: The actual maximum power consumption depends on local laws and regulations | |
| Maximum Number of Users | ≤ 1024 |
| Note: The actual number of users varies according to the environment | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | AirEngine 6761-21: Built-in Dynamic-Zoom Smart Antennas |
| AirEngine 6761-21E: External antennas | |
| MIMO:Spatial Streams | 2.4 GHz: 4 x 4:4, 5 GHz: 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 3.55 Gbit/s |
