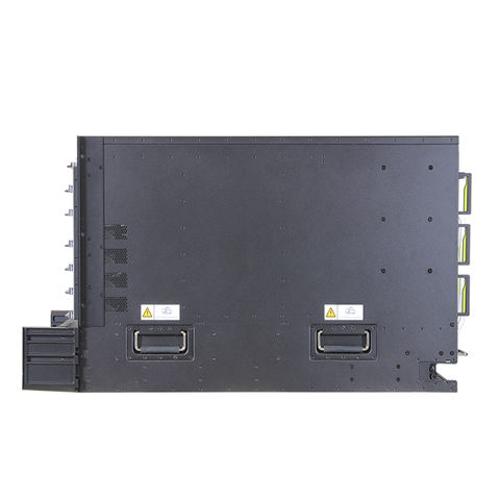

Huawei Campus 100G Network Switch CE12804
Short Description:
| Switching Capacity (Tbit/s) | |
| 30/2581 | |
| 59/5161 | 45/2581 |
| Forwarding Rate | |
| 17,280 Mpps | |
| 34,560 Mpps | 17,280 Mpps |
| Service Slots | |
| 4 | |
| 8 | 4 |
| Switching FabricModule Slots | |
| 2 | |
| 4 | 6 |
| Fabric Architecture | Clos architecture, cell switching, VoQ, and distributed large buffer |
| Airflow Design | Strict front-to-back |
| Network Virtualization | M-LAG |
| VM Awareness | Agile Controller |
| Network Convergence | FCoE |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| MAC Address | Dynamic learning and aging of MAC addresses |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| MPLS | Basic MPLS functions |
| Dimensions (W x D x H) | |
| 442 mm x620 mm x352.8 mm(8U) | |
| 442 mm x620 mm x708.4 mm (16U) | 442 mm x 813 mm x 486.15 mm(11U) |
| Chassis Weight (empty) | |
| < 60 kg(132 lb) | |
| < 100 kg(220 lb) | < 110 kg(242 lb) |
| Operating Voltage | AC: 90V to 290VDC: -38.4V to -72VHVDC: 240V |
| Max. Power Supply | |
| 6,000W | |
| 12,000W | 6,000W |
