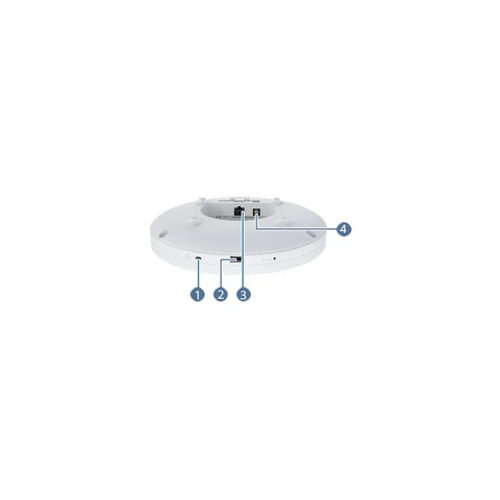

HW smart antenna 2+2 dual bands 11ax indoor access point (AP) AirEngine 5761S-12
Short Description:
| Item | Specification |
| Installation Type | Wall |
| Ceiling | |
| T-Rail | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x length: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.) |
| Weight without packaging [kg(lb)] | 1.05 kg (2.31 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 14.6 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 49.8 BTU/hour |
| Power supply mode | DC adapter |
| PoE | |
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% |
| PoE: 802.3at/af | |
| Service port surge protection [kV] | PoE port: |
| Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B | |
| Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B | |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°Fevery time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band | 2.4GHz |
| 5GHz | |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 |
| Radio 1 (5 GHz): 2x2 | |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax |
| 5G: 802.11a/n/ac/ac Wave 2/ax | |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: |
| 4 dBi/chain (peak value) | |
| 2 dBi (combined gain) | |
| 5G: | |
| 5 dBi/chain (peak value) | |
| 3 dBi (combined gain) | |
| BLE: 4 dBi | |
| Maximum transmit power | 2.4G: |
| 22 dBm/chain | |
| 25 dBm (combined power) | |
| 5G : | |
| 22 dBm/chain | |
| 25 dBm (combined power) | |
| BLE: < 10 dBm | |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 22 dBm/chain |
| 5G: -10 dBm to 22 dBm/chain | |
| MTBF [year] | 192 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | Wi-Fi: 2.4 GHz (2x2)+5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz radio) and 22 dBm (5 GHz radio). |
| Wired network port: No restriction is posed on wired network ports. | |
| Other ports: The USB port is unavailable. | |
| DC power supply description | No function is limited. |
