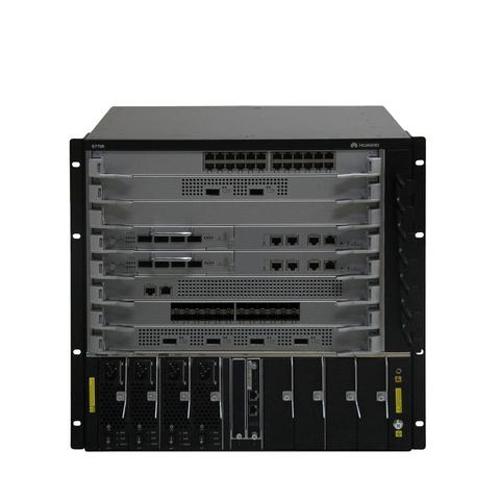

Huawei 10G Ethernet switch s7706 offering data voice video service
Short Description:
| LPU slots | S7703: 3 S7706: 6 S7712: 12 |
| MPU slots | 2 |
| Fan slots | S7703: 1 S7706: 2 S7712: 4 |
| System power supply slots | S7703: 2 S7706: 4 S7712: 4 |
| PoE power supply slots | S7703: 1 S7706: 4 S7712: 4 |
| Maximum port density | S7703: 144xFE, 144xGE, 120x10GE, 6x40GE S7706: 288xFE, 288xGE, 240x10GE, 12x40GE S7712: 576xFE, 576xGE, 480x10GE, 24x40GE |
| Installation | N66E or N68E cabinet S7703: not limited S7706: two chassis in each cabinet S7712: one chassis in each cabinet |
| CSS | S7703: not supported S7706: service port clustering and CSS card clustering S7712: service port clustering and CSS card clustering |
| PoE | Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). PoE power module backup: no backup, 3+1 backup, or 2+2 backup Maximum output power: 8800 W |
| Maximum power consumption (fully loaded, no PoE) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis. | 1600w |
| Power specifications | DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -38.4 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) |
| Dimensions (W x D x H, excluding rack-mounting brackets) | With cable management frames: 442 mm x 585 mm x 441.7 mm (10 U high) Without cable management frames: 442 mm x 489 mm x 441.7 mm (10 U high) |
| Weight (empty/fully loaded) | 15 kg/42 kg |
| Reliability and availability | MTBF: 24.2 years MTTR: 30 minutes Availability: 0.99999959 |
| Environment parameters | Operating temperature and altitude: -60 m to +1800 m: 0°C to 45°C 1800 m to 4000 m: Temperature decreases by 1°C every time the altitude increases 220 m. 4000 m: 0°C to 35°C Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C Storage altitude: < 5000 m Storage relative humidity: 5% RH to 95% RH (noncondensing) |
| Noise at normal temperature (acoustic power) | ≤ 72 dBA |
| EMC compliance | CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A VCCI Class A IEC61000-6-2 IEC61000-6-4 IEC61000-4-2 ITU-T K 20 ITU-T K 21 ITU-T K 44 CNS13438 CLASS A KN 22 CLASS A |
| Environmental standards compliance | RoHS REACH WEEE |
| Safety standards compliance | IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1 BS EN 60950-1 |
