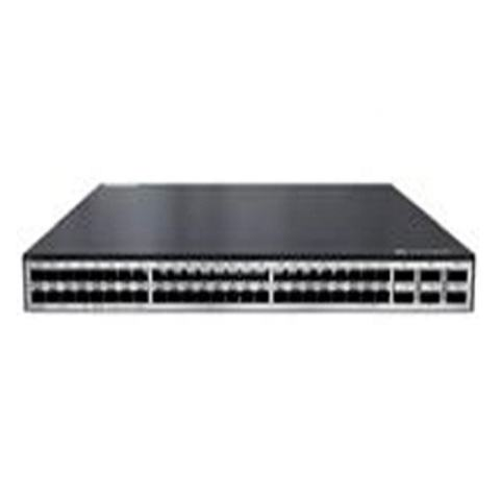

CloudEngine S5732-H48S6Q Enhanced GE Gigabit Switch
Short Description:
| Item | |
| CloudEngine S5732-H24S6Q | CloudEngine S5732-H48S6Q |
| Fixed ports | |
| 20 × GE SFP ports, 4 × 10 GE SFP+ ports, 6 × 40 GE QSFP+ ports | 44 × GE SFP ports, 4 × 10 GE SFP+ ports, 6 × 40 GE QSFP+ ports |
| Dimensions (W x D x H) | |
| 442 mm × 420 mm × 43.6 mm | 442 mm × 420 mm × 43.6 mm |
| Chassis height | |
| 1 U | 1 U |
| Chassis weight (full configuration weight) | |
| 6.95 kg | 7.25 kg |
| Input voltage | |
| * Rated: 100 V AC to 240 V AC; 50/60 Hz * Max AC input: 90 V AC to 290 V AC; 45-65 Hz * Max High-Voltage DC input: 190 V DC to 290 V DC | * Rated: 100 V AC to 240 V AC; 50/60 Hz * Max AC input: 90 V AC to 290 V AC; 45-65 Hz * Max High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum power consumption | |
| 231 W | 274 W |
| Operating temperature | |
| * 0–1800 m altitude: –5°C to +45°C * 1800–5000 m altitude: The operating temperature reduces by 1°C for each 220 m increase in altitude. | * 0–1800 m altitude: –5°C to +45°C * 1800–5000 m altitude: The operating temperature reduces by 1°C for each 220 m increase in altitude. |
| Relative humidity | |
| 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
