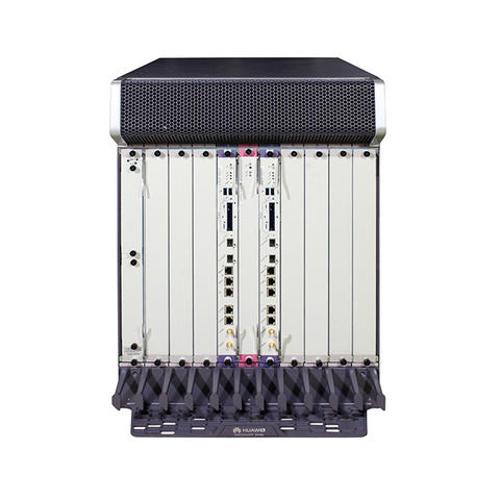

Huawei NE40E VPN Universal Service Router NE40E-X8
Short Description:
| Dimensions (H x W x D) | |
| DC: (4 U) 175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.) AC: (5 U) 220 mm x 442 mm x 650 mm (8.66 in. x 17.40 in. x 25.59 in.) | |
| (14 U) 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.)(Chassis main body) (14 U) 620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.)(Dimensions of the chassis body together with cable trays and front and back attachments) | (32 U) 1420 mm x 442 mm x 650 mm (55.91 in. x 17.40 in. x 25.59 in.) (Chassis main body) (32 U) 1420 mm x 442 mm x 770 mm (55.91 in. x 17.40 in. x 30.31 in.) (Dimensions of the chassis body together with cable trays and front and back attachments) |
| Weight (empty) | |
| DC: 12 kg (26.46 lb) AC: 20 kg (44.1 lb) | |
| 25.8 kg (56.89 lb) (without filler panels) | 69.6 kg (153.47 lb) (without filler panels) |
| Weight (full configuration) | |
| DC: 42 kg (92.61 lb) AC: 52 kg (114.66 lb) | |
| 136 kg (299.88 lb) | 279 kg (615.2 lb) |
| Cabinet installation standard | |
| Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. | |
| Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. | Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Typical power consumption | |
| DC: 800 W (fully configured with LPUF-51s) AC: 950 W (fully configured with LPUF-51s) DC: 920 W (fully configured with LPUF-120s) AC: 1070 W (fully configured with LPUF-120s) | |
| 3220 W (fully configured with LPUF-240s) | 6210 W (fully configured with LPUF-240s) |
| Typical heat dissipation | |
| DC: 2595.5 BTU/hour (fully configured with LPUF-51s) AC: 3082.2 BTU/hour (fully configured with LPUF-51s) DC: 2984.9 BTU/hour (fully configured with LPUF-120s) AC: 3471.5 BTU/hour (fully configured with LPUF-120s) | |
| 10447 BTU/hour (fully configured with LPUF-240s) | 20147.9 BTU/hour (fully configured with LPUF-240s) |
| DC input voltage | |
| input voltage range: –38.4 V to –72 V input rated voltage: –48 V/ –60 V | |
| input voltage range: –38.4 V to –72 V input rated voltage: –48 V/ –60 V | input voltage range: –38.4 V to –72 V input rated voltage: –48 V/ –60 V |
| AC input voltage | |
| input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V | |
| input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V | input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V |
| MTBF | |
| 27.44 years | |
| 21.91 years | 21.66 years |
| MTTR | |
| 0.5 hours | |
| 0.5 hours | 0.5 hours |
| Availability | |
| 0.99999792 | |
| 0.999997395 | 0.999997365 |
| Slot quantity | |
| 5 | |
| 11 | 22 |
| Redundant MPUs | |
| 1:1 | |
| 1:1 | 1:1 |
| Redundant Switch fabrics | |
| N/A | |
| 2+1 | 3+1 |
| Redundant fans | |
| Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) | |
| 2 assemblies Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) | 2 partitions 2 assemblies/partition, each partition in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) |
| Redundant power supply | |
| 1+1 | |
| 2+2 | 4+4 |
| Forwarding performance | |
| 225 Mpps (LPUF-51) 360 Mpps (LPUF-120) | |
| 2880 Mpps (LPUF-240) | 5760 Mpps (LPUF-240) |
| Switching capacity | |
| 1.08 Tbps | |
| 7.08 Tbps (LPUF-240/LPUI-240) | 12.58 Tbps (LPUF-240/LPUI-240) |
| Operating temperature | |
| Long-term: 0°C to 45°C (32°F to 113°F) Short-term: –5°C to +55°C (23°F to131°F) Remark: Restriction on the temperature variation rate: 30°C/hour (86°F/h) | |
| Long-term: 0°C to 45°C (32°F to 113°F) Short-term: –5°C to +55°C (23°F to131°F) Remark: Restriction on the temperature variation rate: 30°C/hour (86°F/h) | Long-term: 0°C to 45°C (32°F to 113°F) Short-term: –5°C to +55°C (23°F to131°F) Remark: Restriction on the temperature variation rate: 30°C/hour (86°F/h) |
| Storage temperature | |
| –40°C to +70°C (–40°F to +158°F) | |
| –40°C to +70°C (–40°F to +158°F) | –40°C to +70°C (–40°F to +158°F) |
| Relative operating humidity | |
| Long term: 5% to 85% RH, non-condensing Short term: 5% to 95% RH, non-condensing | |
| Long term: 5% to 85% RH, non-condensing Short term: 5% to 95% RH, non-condensing | Long term: 5% to 85% RH, non-condensing Short term: 5% to 95% RH, non-condensing |
| Relative storage humidity | |
| 5% to 95% RH, non-condensing | |
| 5% to 95% RH, non-condensing | 5% to 95% RH, non-condensing |
| Long-term operating altitude | |
| <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].) | |
| <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].) | <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude | |
| Less than 5000 m (16404 ft.) | |
| Less than 5000 m (16404 ft.) | Less than 5000 m (16404 ft.) |
