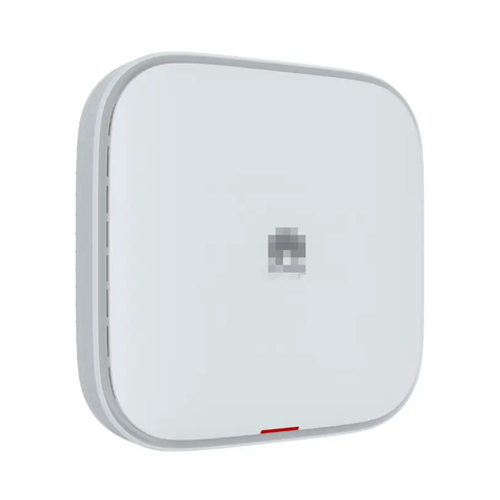

HUA WEI AirEngine 6760-X1 indoor Wi-Fi 6 (802.11ax) Access Points (APs)
Short Description:
| Parameters | AirEngine 6760-X1 & 6760-X1E |
| Dimensions (H x W x D) | 61 mm x 220 mm x 220 mm |
| Power Input | DC: 48 V ± 10% |
| PoE power supply: in compliance with IEEE 802.3bt | |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) |
| Note: The actual number of users varies according to the environment | |
| Port | 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | AirEngine 6760-X1: Built-in Smart Antennas |
| AirEngine 6760-X1E: External antennas | |
| MIMO: Spatial Streams | Basic capability: |
| 2.4 GHz: 4x4:4; 5 GHz: 6x6:6 | |
| Capability upgrade via RTU license: | |
| 2.4 GHz: 4x4:4; 5 GHz: 8x8:8 | |
| 2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4 | |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | Basic capability: 8.35 Gbit/s |
| RTU license upgrade: 10.75 Gbit/s |
