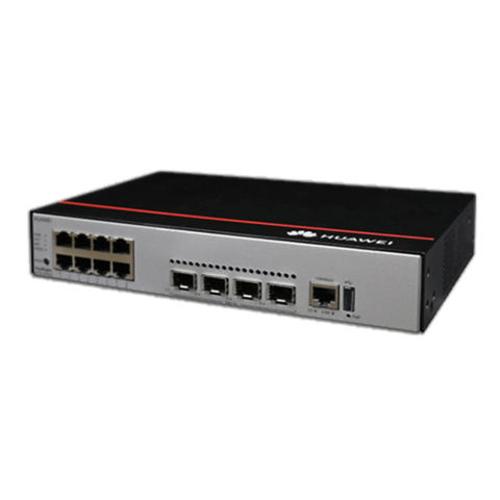

Huawei CloudEngine S5735-L-I Series Extended Temperature Switch S5735-L8T4X-IA1
Short Description:
| Parameters | |
| CloudEngine S5735-L8T4X-IA1 | |
| CloudEngine S5735-L8P4X-IA1 | CloudEngine S5735-L24T4X-IA1 |
| Forwarding Performance | |
| 72 Mpps | |
| 72 Mpps | 96 Mpps |
| Switching Capacity | |
| 96/336 Gbit/s | |
| 96/336 Gbit/s | 128/336 Gbit/s |
| Ports | |
| 8 x 10/100/1000Base-T ports and 4 x 10 GE SFP+ ports | |
| 8 x 10/100/1000Base-T ports and 4 x 10 GE SFP+ ports | 24 x 10/100/1000Base-T ports and 4 x 10 GE SFP+ ports |
| Operating Temperature | |
| –40°C to +70°C | |
| –40°C to +70°C | –40°C to +70°C |
| Surge Protection | |
| Built-in surge protection to handle harsh outdoor environments | |
| Built-in surge protection to handle harsh outdoor environments | Built-in surge protection to handle harsh outdoor environments |
| Relative Humidity | |
| 5–95% (non-condensing) | |
| 5–95% (non-condensing) | 5–95% (non-condensing) |
| Heat Dissipation | |
| Heat dissipation with fans and intelligent fan speed adjustment | |
| Heat dissipation with fans and intelligent fan speed adjustment | Heat dissipation with fans and intelligent fan speed adjustment |
