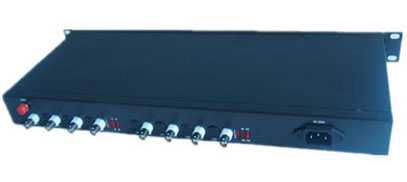

8 channel TVI/CVI/AHD Optic Mux
Introduction
8 channel TVI/CVI/AHD Optic Multiplexer can simultaneously transmit 2 channels AHD/CVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment non-compression real time transmission.
Feature
Non-compression coding technology
Automatically identify formats of input videos.
Support transmission of 8 channel TVI/CVI/AHD signal and controlling data simultaneously though coaxial cable
DC 5V power supply
Support 720p/960P/1080P videos etc.
Through LED indicators to inform its functional mode
Industrial wide range of operational temperature
Plug and play, simple installation.

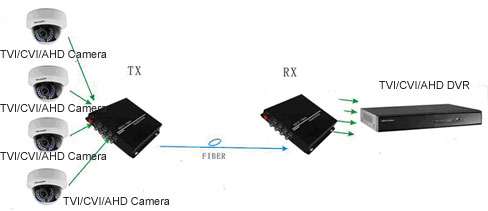

Application
City traffic monitoring system
Public security, safe city monitoring system
Highway security protection, charging system
Building, campus monitoring net
Industrial monitoring (airport, chemical industrial, steel, oil,
railway, water conservancy, mine, etc)
Military monitoring (storehouse, frontier defense, guard, nation
defense, etc)
electric power, oilfield, television program transmission system
Gymnasium (live video, audio transmission)
Technical Specification
Opitcal:
|
Wavelength |
1310nm&1550nm |
|
Output Power |
-8~3dBm |
|
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
|
Rx sensitivity |
-25dBm |
|
Optical connector |
FC,ST,SC (optional) |
|
Distance |
0~550M (MM) / 0~80KM (SM) |
Video:
|
Number of Channels |
8 |
|
Input/output impedance |
BNC 75Ω (unbalance) |
|
Standard video input/output voltage |
1.0Vp-p |
|
Video Bandwidth |
45MHz |
|
Sampling Bandwidth |
10bit |
|
Sampling Frequency |
108MHz |
|
Rise and Fall time |
<0.8ns |
|
Optical Signal Intrinsic Jitter |
<0.2 UI |
|
Differential Gain |
< ±1.5% |
|
Differential Phase |
< ±1° |
|
Connector |
BNC |
other
|
Power |
DC5V 2A |
|
Power Consumption |
≤6W |
|
Temperature |
-40ºC ~75ºC |
|
Humidity |
10%~90% RH |
|
Installation |
Wall mount |
|
MTBF |
≥ 100000Hours |
Solutions
.
Model
|
Model
|
Specifications
|
|
THCM8V |
8 Channel TVI/AHD/CVI optic Video Mux
(1MP/720P，1.3MP/
960P，2MP/1080P) . Automatically identify CVI/AHD/TVI data format. Single-mode, FC, 20km |
