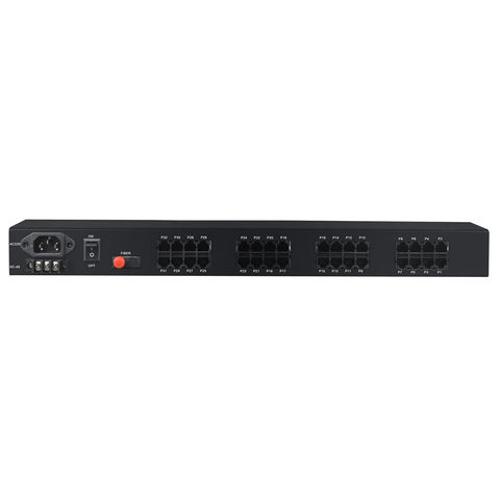

32 Channel Phone Fiber Mux Voice RJ11 to Fiber Converter With Fast Ethernet Port
Short Description:
| Model | Description |
| Functional Description | 32 * telephone，2*100 Mbps Ethernet，1* Fiber interface |
| Power | Power supply: AC180V ~ 260V；DC –48V；DC +24VPower consumption: ≤10W |
| Dimension | Power supply: AC180V ~ 260V；DC –48V；DC +24VPower consumption: ≤10W |
| Weight | 2.4KG |
| Features | Based on self -copyright ICVoice port supports FXO and FXS port,Support FXO/FXS, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;1~32channel Voice access, Voice FXO / FXS interface, support for caller ID / reverse polarity billing / fax function;Support various sites mutual number allocation functionEthernet interface supports10/100M, half/full duplex auto- adaptable, support VLANEthernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable)Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards.The transmission distance is up to 2-120Km without interruptionAC 220V, DC-48V, DC24V can be optional |
