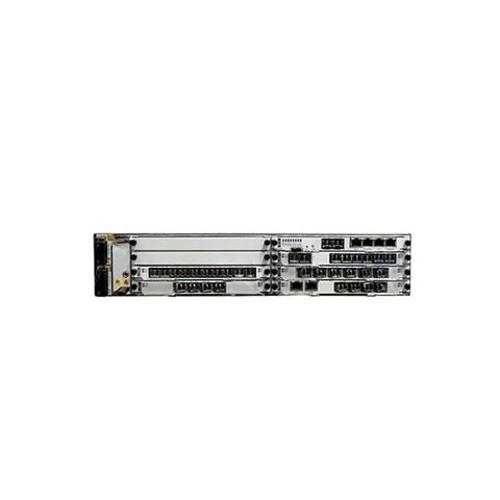

OSN 1800 Compact Multi-Service Edge Optical Transport Platform DWDM
Short Description:
| SDH | |
| STM-1 | |
| 155.52 M bit/s | OTN: LQM2, ELOM SDH: SL1Q, UXCL |
| STM-4 | |
| 622.08 M bit/s | OTN: LQM2, ELOM SDH: SL4D, UXCL |
| STM-16 | |
| 2.5 Gbit/s | OTN: LQM2, ELOM SDH: UXCL |
| STM-64 | |
| 9.95 Gbit/s | OTN: LDX, ELOM |
| PDH | |
| E1 | |
| 2.048 Mbit/s | PDH: SP3D Packet: MD1 |
| T1 | |
| 1.544 Mbit/s | PDH: SP3D |
| E3 | |
| 34.368 Mbit/s | PDH: PL3T |
| T3 | |
| 44.736 Mbit/s | PDH: PL3T |
| OTN | |
| OTU1 | |
| 2.67 Gbit/s | OTN: LQM2, ELOM |
| OTU2 | |
| 10.71 Gbit/s | OTN: LDX, ELOM |
| OTU2e | 11.10 Gbit/s |
| Ethernet | |
| FE (electrical port) | |
| 10/100 Mbit/s | Packet: EM6F, EF8F |
| FE (optical port) | |
| 125 Mbit/s | OTN: LQM2, ELOM Packet: EF8F, EM6F, EG4C |
| GE (electrical port) | |
| 1000 Mbit/s | Packet: EM6F, EG4C |
| GE (optical port) | |
| 1.25 Gbit/s | OTN: LQM2, ELOM Packet: EM6F, EG4C |
| 10 GE LAN | |
| 10.31 Gbit/s | OTN: LDX, ELOM Packet: UXCL |
| 10 GE WAN | |
| 9.95 Gbit/s | OTN: LDX, ELOM Packet: UXCL |
| ATM/IMA | |
| ATM/IMA E1 | |
| 2.048 Mbit/s | Packet: MD1 |
| SAN | |
| FC100, FICON(Fiber Connection) | |
| 800 M bit/s | OTN: LQM2, ELOM |
| FC200, FICON Express | |
| 1.6 Gbit/s | OTN: LQM2, ELOM |
| ESCON(Enterprise Systems Connection) | |
| 200 Mbit/s | OTN: LQM2, ELOM |
| FC400, FINCON 4G | |
| 3.2 Gbit/s | OTN: ELOM |
| FC800, FINCON 8G | |
| 6.4 Gbit/s | OTN: LDX, ELOM |
| FC1200, FINCON 10G | |
| 10.2 Gbit/s | OTN: LDX, ELOM |
| CPRI | |
| CPRI line bit rate option 2 | |
| 1.229 Gbit/s (2 x 614.4 Mbit/s) | OTN: ELOM, TNF2LQM2a |
| CPRI line bit rate option 3 | |
| 2.458 Gbit/s (4 x 614.4 Mbit/s) | OTN: ELOM, TNF2LQM2 |
| CPRI line bit rate option 5 | |
| 4.915 Gbit/s (8 x 614.4 Mbit/s) | OTN: ELOM |
| CPRI line bit rate option 6 | |
| 6.144 Gbit/s (10 x 614.4 Mbit/s) | OTN: ELOM |
| Video service and others | |
| DVB-ASI | |
| 270 Mbit/s | OTN: LQM2, ELOM |
| SDI | |
| 270 Mbit/s | OTN: LQM2, ELOM |
| HD-SDI | |
| 1.485 Gbit/s | OTN: LQM2, ELOM |
| 3G-SDI | |
| 2.97 Gbit/s | OTN: ELOM |
