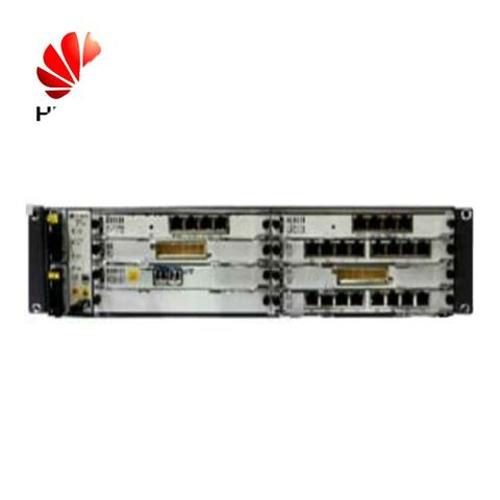

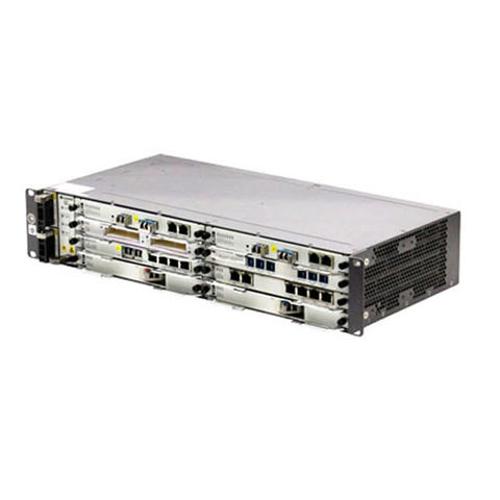

Huawei wireless optical transmitter and receiver OSN 550 STM-4 SDH
Short Description:
| System control, switching, and timing board (Hybrid) | |
| TNM1PCXLX | |
| The cross-connect, timing, system control, and line board supports: A packet switching capacity of 64 Gbit/s A higher order cross-connect capacity of 20 Gbit/s and a lower order cross-connect capacity of 5 Gbit/s One 10GE port and one STM-N port System control and communication | |
| One NMS port/NMS serial port (sharing one RJ45 port) One STM-1/STM-4/STM-16 small form-factor pluggable (SFP) optical port. The optical port type can be S-1.1, L-1.1, L-1.2, S-4.1, L-4.1, L-4.2, S-16.1, L-16.1, or L-16.2. One 10GE XFP optical port: 10GBASE-SR (LAN)/10GBASE-SW (WAN)/10GBASE-LR (LAN)/10GBASE-LW (WAN)/10GBASE-ER (LAN)/10GBASE-EW (WAN)/10GBASE-ZR (LAN)/10GBASE-ZW (WAN) | Slots 7 and 8 |
| TNM1PCXX | |
| The cross-connect, timing, system control, and line board supports: A packet switching capacity of 64 Gbit/s A higher order cross-connect capacity of 20 Gbit/s and a lower order cross-connect capacity of 5 Gbit/s One 10GE port System control and communication | |
| One NMS port/NMS serial port (sharing one RJ45 port) One 10GE XFP optical port: 10GBASE-SR (LAN)/10GBASE-SW (WAN)/10GBASE-LR (LAN)/10GBASE-LW (WAN)/10GBASE-ER (LAN)/10GBASE-EW (WAN)/10GBASE-ZR (LAN)/10GBASE-ZW (WAN) | Slots 7 and 8 |
| TNM1PCXLG | |
| The cross-connect, timing, system control, and line board supports: A packet switching capacity of 46 Gbit/s A higher order cross-connect capacity of 20 Gbit/s and a lower order cross-connect capacity of 5 Gbit/s One GE port and one STM-N port System control and communication | |
| One NMS port/NMS serial port (sharing one RJ45 port) One STM-1/STM-4/STM-16 small form-factor pluggable (SFP) optical port. The optical port type can be S-1.1, L-1.1, L-1.2, S-4.1, L-4.1, L-4.2, S-16.1, L-16.1, or L-16.2. One GE SFP optical port: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX | Slots 7 and 8 |
| TNM1PCXGA | |
| The cross-connect, timing, system control, and line board supports: A packet switching capacity of 30 Gbit/s A higher order cross-connect capacity of 20 Gbit/s and a lower order cross-connect capacity of 5 Gbit/s One GE port System control and communication | |
| One NMS port/NMS serial port (sharing one RJ45 port) One GE SFP optical port: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX | Slots 7 and 8 |
| TNM1PCXGB | |
| The cross-connect, timing, system control, and line board supports: A packet switching capacity of 46 Gbit/s A higher order cross-connect capacity of 20 Gbit/s and a lower order cross-connect capacity of 5 Gbit/s One GE port System control and communication | |
| One NMS port/NMS serial port (sharing one RJ45 port) One GE SFP optical port: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX | Slots 7 and 8 |
| System control, switching, and timing board (TDM) | |
| TNM1CXL1 | |
| The cross-connect, timing, system control, and line board supports: A higher order cross-connect capacity of 20 Gbit/s and a lower order cross-connect capacity of 5 Gbit/s System control and communication | |
| One NMS port/NMS serial port (sharing one RJ45 port) One STM-1 SFP optical port. The optical port type can be S-1.1, L-1.1, or L-1.2. | Slots 7 and 8 |
| TNM1CXL4 | |
| One NMS port/NMS serial port (sharing one RJ45 port) One STM-4 SFP optical port of the S-4.1, L-4.1, or L-4.2 type | Slots 7 and 8 |
| TNM1CXL16 | |
| One NMS port/NMS serial port (sharing one RJ45 port) One STM-16 SFP optical port of the S-16.1, L-16.1, or L-16.2 type | Slots 7 and 8 |
| Packet processing board | |
| TNM1MD1 | |
| 32xSmart E1 service processing board | |
| 75/120-ohm E1 port | Slots 1 to 6 |
| TNM1EM6T | |
| 6xRJ45 FE/GE processing board | |
| Four FE electrical ports: 10/100BASE-T(X) Two GE electrical ports (they can serve as FE electrical ports): 1000BASE-T | Slots 1 to 6 |
| TNM1EM6F | |
| 4xRJ45 and 2xSFP FE/GE processing board | |
| Four FE electrical ports: 10/100BASE-T(X) Two GE/FE SFP optical/electrical ports: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX/1000BASE-T/100BASE-BX/100BASE-FX/100BASE-LX/100BASE-VX/100BASE-ZX | Slots 1 to 6 |
| TNM1EG4C | |
| 4xGE (SFP/RJ45) processing board | |
| Four GE electrical ports: 1000BASE-T Four GE/FE SFP optical ports: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX/100BASE-BX/100BASE-FX/100BASE-LX/100BASE-VX/100BASE-ZX | Slots 3 to 6 |
| TNM1EG8 | |
| 8xGE processing board | |
| Eight GE/FE SFP ports of the following types: GE electrical port: 1000BASE-T GE/FE optical port: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX/100BASE-BX/100BASE-FX/100BASE-LX/100BASE-VX/100BASE-ZX | Slots 3 and 4 |
| TNM1EF8F | |
| 8xFE processing board | |
| Eight FE SFP optical/electrical ports: 100BASE-BX/100BASE-FX/100BASE-LX/100BASE-VX/100BASE-ZX/100BASE-T | Slots 1 to 6 |
| TNM1EX1 | |
| 1x10GE processing board | |
| One 10GE XFP optical port: 10GBASE-SR (LAN)/10GBASE-SW (WAN)/10GBASE-LR (LAN)/10GBASE-LW (WAN)/10GBASE-ER (LAN)/10GBASE-EW (WAN)/10GBASE-ZR (LAN)/10GBASE-ZW (WAN) | Slots 1 and 2 (An EX1 board cannot work with a PCXGA board.) |
| TNM1CQ1 | |
| 4xChannelized STM-1 service processing board | |
| Four STM-1 SFP optical/electrical ports of the S-1.1, L-1.1, or L-1.2 optical type or of SFP electrical modules | Slots 1 to 6 |
| SDH board | |
| TNH2SL1D | |
| 2xSTM-1 processing board | |
| Two STM-1 SFP optical ports. The optical port type can be S-1.1, L-1.1, or L-1.2. | Slots 1 to 6 |
| TNH2SL1Q | |
| 4xSTM-1 processing board | |
| Four STM-1 SFP optical ports. The optical port type can be S-1.1, L-1.1, or L-1.2. | Slots 1 to 6 |
| TNH2SL4D | |
| 2xSTM-4 processing board | |
| Two STM-4 SFP optical ports of the S-4.1, L-4.1, or L-4.2 type | Slots 1 to 6 |
| PDH board | |
| TNH2SP3D | |
| 42xE1/T1 tributary processing board | |
| Forty-two 75/120-ohm E1 ports or forty-two 100-ohm T1 ports | Slots 1 to 6 |
| TNH2PL3T | |
| 3xE3/T3 tributary processing board | |
| Three 75-ohm E3/T3 ports | Slots 1 to 6 |
| TNM1PD1 | |
| 32xE1/T1 TPS processing board | |
| Is a 32xE1 (75/120-ohm) or 32xT1 (100-ohm) tributary processing board without ports on its front panel and must work with a DMS board when providing TPS. | Slots 121 to 128 (PD1 boards, which do not occupy physical slots, can be used only with DMS boards. Slots 121 to 128 are logical slots.) |
| TNM1DMS | |
| 32xE1/T1 TPS interface board | |
| Is a 32xE1 (75/120-ohm) or 32xT1 (100-ohm) tributary interface board and must work with a PD1 board. | Slots 1 to 4 |
| EoS board | |
| TNH2EFS8 | |
| 8xFE switching and processing board | |
| Eight FE electrical ports: 10/100BASE-T(X) | Slots 1 to 6 |
| TNH2EGT1 | |
| 1xGE transparent transmission board | |
| One GE SFP optical/electrical port: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX/1000BASE-T | Slots 1 to 6 |
| TNM1EGS4 | |
| 4xGE switching and processing board | |
| Four GE/FE SFP optical/electrical ports: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX/1000BASE-T/100BASE-BX/100BASE-FX/100BASE-LX/100BASE-VX/100BASE-ZX | Slots 1 to 6 |
| WDM board | |
| TNM1DMD2 | |
| 2-port optical add/drop multiplexing board | |
| wIN/wOUT wA1/wA2 wD1/wD2 eIN/eOUT eA1/eA2 eD1/eD2 | Slots 1 to 6 |
| Auxiliary board | |
| TNM1AUX | |
| Auxiliary interface board | |
| One orderwire phone port One asynchronous data port One synchronous data port 6-input/2-output alarm port One 2-channel external clock port Two 2-channel external time ports | Slots 1 to 6 |
| TNM1FAN | |
| Fan board | |
| N/A | Slot 93 |
