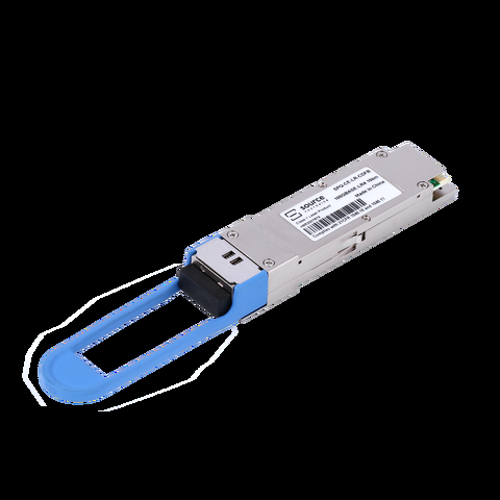

SOURCE SPQ-CE-LR-CDFF-EN 100G-LR4 10km QSFP28 optical transceiver module
Short Description:
| Brand | Source |
| Place of origin | China |
| Transmitter | EML |
| Receiver | PIN |
| Rx Power (Each Lane) | -10.6 to 4.5-10.6 to 4.5 |
| Average Launch Power Tx_Off (Each Lane) | -30dBm |
| Tx Output Power (Each Lane) | -4.3-4.5dBm |
| Receiver Sensitivity (OMA) per Lane | -8.6dBm |
| Stressed Receiver Sensitivity in OMA (Each Lane) | -6.8dBm |
| Receiver Reflectance | -26dBm |
| Tx Output Power (Each Lane) | Yes |
| warranty | 1 year |
| temperature | 0-70ºC |
