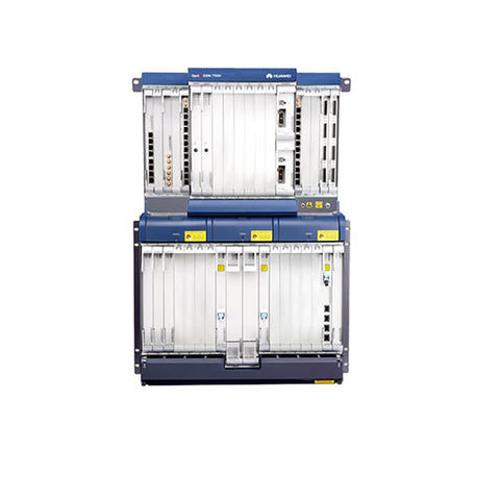

huawei OSN 7500 SDH PDH multiplexer optical transmission system
Short Description:
| Subrac Type | |
| Maximum Power Consumptiona | |
| Fuse Capacity | Typical Configuration |
| Typical Power Consumption | Typical Configuration |
| General OptiX OSN 7500 subrack | |
| 1100 W | |
| 32 A | |
| 663 W | · Two N1SL64 (S-64.2b, LC) boards · Two N3SLQ41 (S-4.1, LC) boards · One N1SLT1 (S-1.1, LC) board · Three N1PEGS8 (1000BASE-LX, 1310-LC) boards · Two N2PEX1 (10GBASE-LR, 1310-LC) boards · Two N1PETF8 boards · Two T1PSXCSA boards · Two N6GSCC boards · Two T1PIU boards · One T1AUX board · One T1EOW board |
| OptiX OSN 7500 type-III subrack | |
| 2300 W | |
| 63 A | |
| 986 W | · Two N1SL64 (S-64.2b, LC) boards · Three N1SLQ41 (S-4.1, LC) boards · Two N1SLT1 (S-1.1, LC) boards · Four N1PEG8 (1000BASE-LX, 1310-LC) boards · Six N2PEX1 (10GBASE-LR, 1310-LC) boards · Three N1PETF8 boards · Two T1PSXCSA boards · Two N6GSCC boards · Two T1PIUB boards · One T1AUX board · One T1EOW board |
