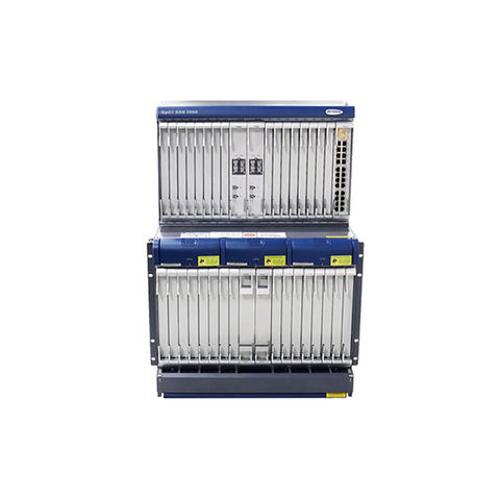

sdh OSN 3500 MSTP System STM-64
Short Description:
| Service Type | Description |
| SDH services | · Standard SDH services: STM-1/STM-4/STM-16/STM-64 · Standard SDH concatenated services: VC-4-4c/VC-4-8c/VC-4-16c/VC-4-64c/AU-3 · Standard SDH virtual concatenation services: VC-4-Xv (X≤8), VC-3-Xv (X≤24), VC-12-Xv (X≤63) · SDH services with FEC: 10.709 Gbit/s, 2.666 Gbit/s |
| PDH services | · E1 (optical) service · E1 (electrical)/T1 service · E3/T3 service · E4 service |
| Ethernet services | · Ethernet private line (EPL) service · Ethernet virtual private line (EVPL) service · Ethernet private LAN (EPLAN) service · Ethernet virtual private LAN (EVPLAN) service |
| RPR services | · EVPL service · EVPLAN service |
| ATM services | · Constant bit rate (CBR) service · Real-time variable bite rate (rt-VBR) service · Non real-time variable bite rate (nrt-VBR) service · Unspecified bit rate (UBR) service |
| DDN services | · Nx64 kbit/s (N = 1-31) service · Framed E1 service |
| SAN services | · Fiber channel (FC) service · Fiber connection (FICON) service · Enterprise systems connection (ESCON) service |
| Video services | · Digital video broadcast-asynchronous serial interface (DVB-ASI) service · High definition-serial digital interface (HD-SDI) electrical service · Standard definition-serial digital interface (SD-SDI) electrical service |
