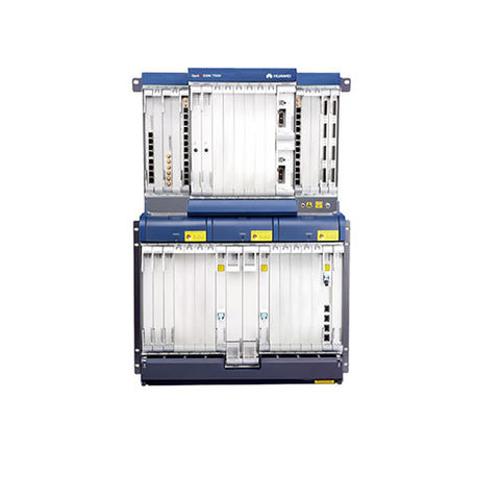

huawei sdh multiplexer OSN 7500 pdh mstp
Short Description:
| SDH service interface | STM-1 electrical interfaces: SMB connectors and SAA connectors STM-1 optical interfaces: I-1, Ie-1, S-1.1, L-1.1, L-1.2, Ve-1.2 STM-4 optical interfaces: I-4, S-4.1, L-4.1, L-4.2, Ve-4.2 STM-16 optical interfaces: I-16, S-16.1, L-16.1, L-16.2, L-16.2Je, V-16.2Je, U-16.2Je STM-16 optical interfaces (FEC): Ue-16.2c, Ue-16.2d, Ue-16.2f STM-64 optical interfaces: I-64.1, I-64.2, S-64.2b, L-64.2b, Le-64.2, Ls-64.2, V-64.2b, P1L1-2D2 STM-64 optical interfaces (FEC): Ue-64.2c, Ue-64.2d, Ue-64.2e STM-16 and STM-64 optical interfaces that comply with ITU-T G.692 can output fixed wavelength from 191.1 THz to 196.0 THz, and can directly be interconnected with the WDM equipment. |
| PDH service interface | 75/120-ohm E1 electrical interfaces: DB44 connectors 100-ohm T1 electrical interfaces: DB44 connectors 75-ohm E3, T3 and E4 electrical interfaces: SMB connectors |
| Ethernet service interface | 10/100BASE-TX, 100BASE-ZX, 100BASE-VX, 100BASE-LX, 100BASE-FX, 1000BASE-VX, 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, 1000BASE-T, 10GBASE-LW, 10GBASE-LR |
| DDN service interface | RS449, EIA530, EIA530-A, V.35, V.24, X.21, and framed E1 interface |
| ATM service interface | STM-1 ATM optical interfaces: Ie-1, S-1.1, L-1.1, L-1.2, Ve-1.2 STM-4 ATM optical interfaces: S-4.1, L-4.1, L-4.2, Ve-4.2 E3 interfaces: E3 services are accessed by the E3 board IMA E1 interfaces: IMA E1 services are accessed by the E1 board |
| Storage area network (SAN)/Video service interface | FC100, FICON, FC200, ESCON, or DVB-ASI service optical interfaces |
