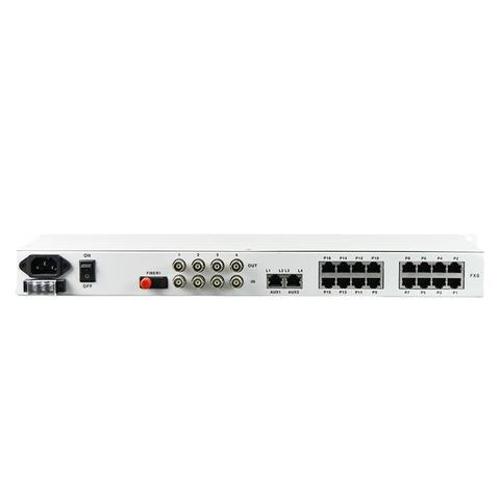

High Quality 16 Channel Voice Fxo Fxs Multiplexer 4E1 4FE Telephone to Fiber Converter
Short Description:
| Model | Description |
| FCP-O32E4F4pR4 | The equipment provides 32*Voice, 1 ~ 4 E1 interface, 4 physical isolation 100M Ethernet interface (100M per wire speed independent bandwidth), and four extended service interfaces. 4 expansion service interface can be used as RS232/RS485/RS |
| Based on independent intellectual property rights of integrated circuits;◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recovery and smooth phase-locked technology;◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface,FXO port plug into PBX,FXS port is connected to the user's telephone;◆ Voice FXO / FXS access, support for caller ID / reverse polarity billing / fax function;◆ Both sides of the device support FXO+FXS hybrid access;◆ rovide 4 expansion interface, you can extend 1 ~ 4 asynchronous data, such as RS232/RS485/RS422/TTL, etc .; or 1 to 8 dry contact;◆ 4*FE Ethernet interface 10/100M, full/half duplex fully adaptive, each independent bandwidth wire speed 100M, the total bandwidth can be two-direction 4*100M;◆ Each Ethernet port supports Auto-MDIX (cross / direct wire adaptation);◆ no relay transmission distance of up to 2 to 100 km; to provide the main optical fiber interface and backup fiber interface, dual optical port backup function to ensure that business never interrupted;◆ Supports Console network management and independent SNMP network management mode;◆ A variety of power supply options: AC220V, DC-48V / DC24V, etc .; support AC + DC; AC + AC; DC + DC and other dual power backup mode;◆ Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard; |
