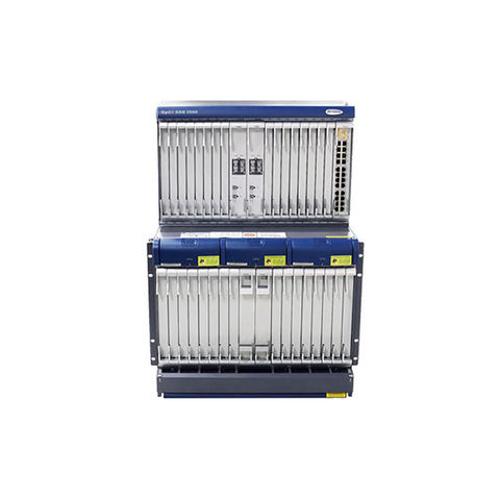

HUAWEI OSN 3500 STM-1 STM-4 STM-64 SDH fiber optical multiplexer equipment
Short Description:
| Service Type | Description |
| SDH services | Standard SDH services: STM-1/STM-4/STM-16/STM-64 Standard SDH contiguous concatenation services: VC-4-4c/VC-4-8c/VC-4-16c/VC-4-64c/AU-3 Standard SDH virtual concatenation services: VC-4-Xv (X≤64), VC-3-Xv (X≤192), VC-12-Xv (X≤63) SDH services with FEC: 10.709 Gbit/s, 2.666 Gbit/s |
| PDH services | E1/T1 service E3/T3 service E4 service NOTE: With the E13/M13 function, the equipment can perform multiplexing and demultiplexing between E1/T1 signals and E3/T3 signals. |
| Ethernet services | Ethernet service transmission on the platforms of Ethernet over SDH (EoS) and Ethernet over PDH (EoP) Ethernet private line (EPL) service Ethernet virtual private line (EVPL) service Ethernet private LAN (EPLAN) service Ethernet virtual private LAN (EVPLAN) service |
| RPR services | EVPL service EVPLAN service |
| ATM services | Constant bit rate (CBR) service Real-time variable bit rate (rt-VBR) service Non real-time variable bit rate (nrt-VBR) service Unspecified bit rate (UBR) service Unspecified bit rate plus (UBR+) service |
| DDN services | N x 64 kbit/s (N=1-31) service Framed E1 service |
| SAN/Video services | Fiber channel (FC) service Fiber connection (FICON) service Enterprise systems connection (ESCON) service Digital video broadcast - asynchronous serial interface (DVB-ASI) service |
