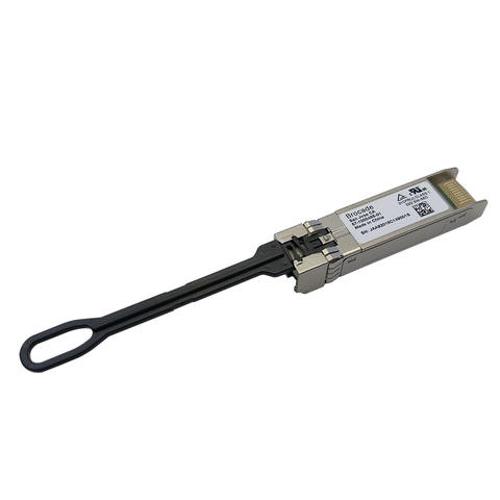

Brocade XBR-000413 32G FC 100m LC SMF LWL optical transceiver module for G720 SAN Switch
Short Description:
| Brand | Brocade |
| Place of origin | Malaysia |
| Form Factor | SFP+ |
| Data Rate (max) | 32Gb/s |
| Low End Case Temperature (°C) | −40°C |
| High End Case Temperature (°C) | 85°C |
| Diagnostics | Digital |
| Width | 14.80 mm (0.58 inches) |
| Height | 12.21 mm (0.48 inches) |
| Depth | 56.70 mm (2.23 inches) |
| Tx Average power | −6.7 dBm to 1.6 dBm |
| Rx Average power | 2 dBm max |
| RIN | −129 dB/Hz max |
| OMA | 479 µW min |
| Unstressed sensitivity | 95 µW, −10.2 dBm |
| 3 dB cutoff maximum | 18 GHz |
| OMA | 263 µW |
| Connector | LC duplex |
