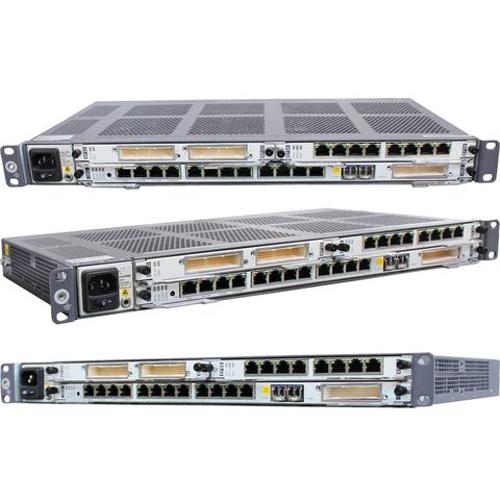

OSN 500 SDH small optical transmitter STM-1
Short Description:
| Subrack dimensions | 44mm (H) x 442mm (W) x 220mm(D) |
| Switching capacity | Packet: 7.2 Gbit/s or TDM: 20 Gbit/s (higher order), 5 Gbit/s (lower order) |
| Service slots | 2 service interface slots |
| Supported interfaces | |
| Packet transport interfaces | E1, ch STM-1, ATM STM-1,FE/GE |
| MSTP interfaces | STM-1/4, E1/E3/T1/T3, FE/GE |
| WDM interfaces | 40-channel DWDM interfaces, compliant with ITU-T G.694.18-channel CWDM interfaces, compliant with ITU-T G.694.2 |
| Networking Mode | Supports pure packet or SDH networkingSupports WDM networkingSupports single-fiber bidirectional transmission |
| Power Supply | -38.4~-72V DC; 110/220V AC |
| Installation | ETSI rack with 300mm/600mm depth 19-inch rackWall-mountDesktopOut-door cabinet |
| Weight | ≤ 5 kg |
| Operation Environment | Temperature Relative HumidityLong term: -5°C ~ 55°C 10% ~ 90%Short term: -5°C ~ 65°C 5% ~ 95% |
| Service features | E-Line and E-LANQinQMPLS-TP based VPWS and VPLSMulti-section pseudo-wire (MS-PW)TDM PWE3: CESoPSN and SAToP, compression of idle timeslotsATM/IMA PWE3ETH PWE3IGMP SNOOPING V2Blacklist, Broadcast packet suppression, ACLVLAN SWAP |
| QoS features | DiffServ mode based on traffic classification Simple traffic classification, complex traffic classification, per hop behavior (PHB), and ACLCommitted access rate (CAR)PQ scheduling priority, weighted round robin (WRR) and PQ+WRR queuingTail drop and weighted random early detection (WRED)Eight priority queuesShaping based on port scheduling priority |
| Hardware-based OAM | |
| MPLS OAM | LSP/PW OAM:FDI, BDICV, FFD, TraceRoute, PingCES PW VCCV |
| MPLS-TP OAM | |
| LSP/PW OAM:CC,LB,LTAIS,RDILM,DM LCK,TSTCSF | Section OAM:CC,LBRDILM,DM LCK,TST |
| Ethernet OAM | ETH-CC(Continuity Check),ETH-Loopback,ETH-Link TraceRemote Loopback,Remote Fault Detection |
