| Main features |
Systems Architecture |
| Power consumption |

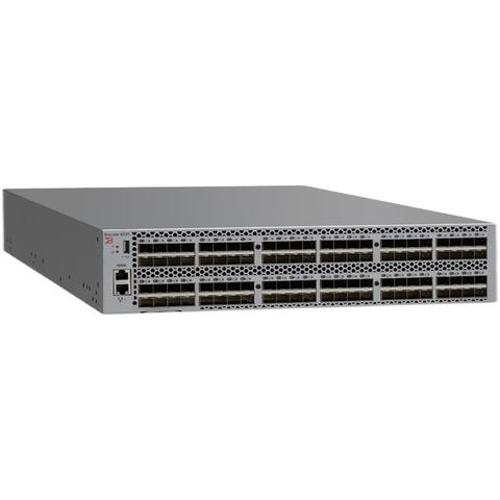

464 W with all 96 ports populated with 16 Gbps SWL optics 183 W for empty chassis with no optics
|
| Scalability |
Full-fabric architecture with a maximum of 239 switches |
| Certified maximum |
6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access |
10/100/1000 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ45), and one USB port |
| ISL Trunking |
Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB |
One USB port for system log file downloads or firmware upgrades |
| Vibration |
Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Power supply |
Dual, hot-swappable redundant power supplies with integrated system cooling fans
|
