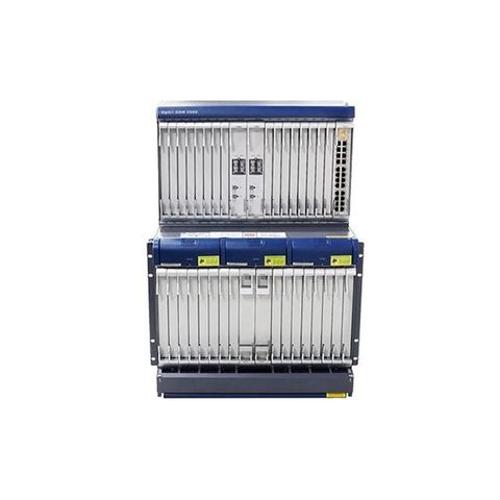

OSN 3500 STM-64 sdh MSTP System
Short Description:
| Subrack dimensions | 722 mm (H) x 497 mm (W) x 295 mm (D) |
| Switching capacity | Packet: 160 Gbit/s and TDM: 200 Gbit/s (higher order), 20 Gbit/s (lower order) |
| Service slots | 15 slots for processing boards and 16 slots for interface boards |
| Highly reliable design | 1+1 hot backup for power supply modules, system control boards, cross-connect and synchronous timing boardsRedundancy protection for fan modules |
| Supported interfaces | |
| Packet transport interfaces | E1, ch STM-1, ATM STM-1, FE/GE/10GE |
| MSTP INTERFACES | STM-1/4/16/64, E1/E3/E4/T1/T3, FE/GE/10GE, DDN, IMA/ATM, FEC/EFEC interface, E1 optical interface, SAN, Video |
| PCM interfaces | FXS/FXO, 2/4 wire/E&MV.35/X.21/V.11/V.24/V.28, RS232/422 |
| WDM INTERFACES | 40-channel DWDM interfaces, compliant with ITU-T G.694.18-channel CWDM interfaces, compliant with ITU-T G.694.2 |
| Networking Mode | Supporting pure packet,hybrid (packet + SDH) or SDH networking Supporting WDM networkingSupporting single-fiber bidirectional transmission |
| Power Supply | -38.4~ -72V DC; 110/220V AC (External module) |
| Operation Environment | Temperature Relative HumidityLong term: 0°C ~ 45°C 10% ~ 90%Short term: -5°C ~ 55°C 5% ~ 95% |
