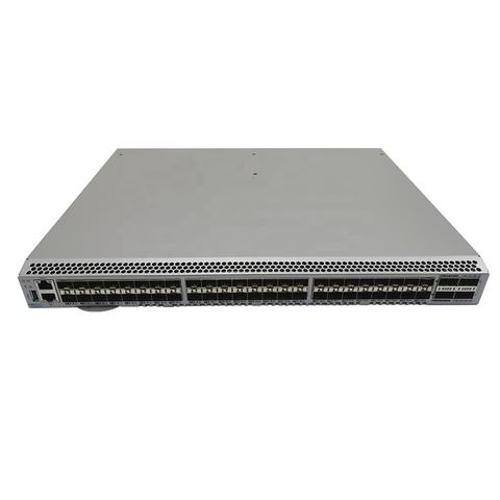

Brocade 24/56 ports Brocade G720 Switch G720-56-32G/64G-F Fiber Optical Switch
Short Description:
| Model | G720-56-32G/64G-F |
| Device Type | For Brocade G720 Switch 24 -56ports with 24 x 32 Gbps SFP transceiver |
| Fibre Channel ports | Switch mode (default): 24-, 36-, and 48-port configurations (12-port increments through Ports on Demand [PoD] licenses); E, F, M, D, EX ports For Brocade Access Gateway default port mapping: 40 F_Ports, 8 N_Ports |
| Scalability | Full fabric architecture with a maximum of 239 switches |
| Aggregate bandwidth | 768 Gbps end-to-end full duplex |
| Maximum fabric latency | Latency for locally switched ports is 700 ns; encryption/compression is 5.5 µsec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default). |
| Maximum frame size | 2,112-byte payload |
| Frame buffers | 8,192 dynamically allocated |
| Port types | D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, M_Port (Mirror Port); optional port type control For Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
| Data traffic types | Fabric switches supporting unicast |
| Media types | 16 Gbps: For Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 16 Gbps SWL, LWL, ELWL 10 Gbps: For Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 10 Gbps SWL, LWL 8 Gbps: For Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 8 Gbps SWL, LWL, ELWL Fibre Channel distance subject to fiber-optic cable and port speed |
| USB | One USB port for system log file downloads or firmware upgrades |
| Management access | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| Enclosure | Front-to-back airflow; power from back, 1U Back-to-front airflow; power from back, 1U |
| Size | Width: 437.64 mm (17.23 in.) Height: 43.18 mm (1.7 in.) Depth: 443.23 mm (17.45 in.) |
| System weight | 9.16 kg (20.20 lb) with two power supply FRUs, without transceivers |
