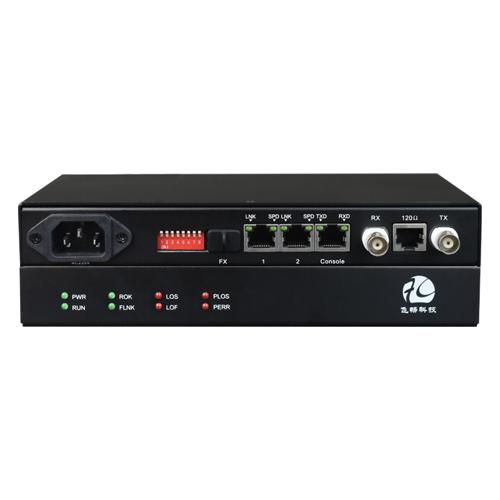

TDMoIP E1 V.24 V.35 E1 Tdm Over IP Single E1 TDM Over IP Ethernet Converter
Short Description:
| Ethernet interface(10/100M) | |
| Interface rate: | 10/100 Mbps, half/full duplex auto-negotiation |
| Interface Standard: | Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
| MAC Address Capability: | 4096 |
| Connector: | RJ45, support Auto-MDIX |
| E1 Interface | |
| Standard: | conform to G.703 standard |
| Code rate: | 2.048Mbit/s±50ppm |
| Code type: | HDB3 |
| Impendence: | 75Ω (unbalance) / 120 (balance) |
| Connector: | BNC (unbalance) / RJ45 (balance) |
| Jitter Tolerance: | conform to G.742 and G.823 |
| Working environment | |
| Working Temperature: | -10°C ~ 50°C |
| Working Humidity: | 5%~95 % (no condensation) |
| Storage Temperature: | -40°C ~ 80°C |
| Storage Humidity: | 5%~95 % (no condensation) |
