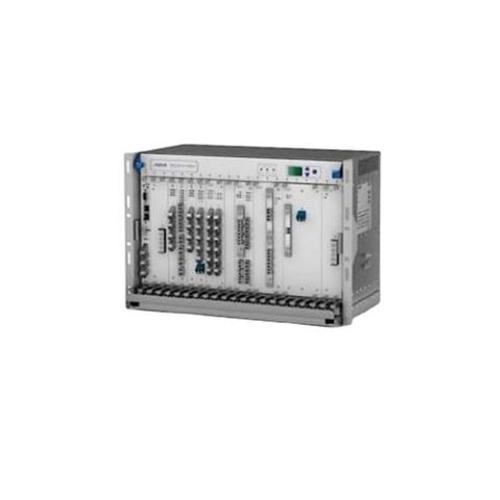

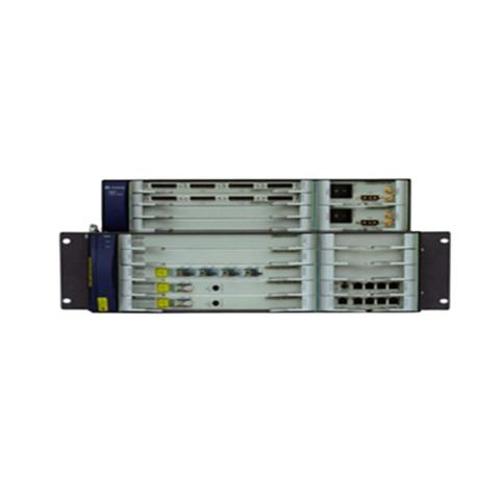

HUAWEI MSTP OSN 1500 Optical Transmission SDH Multiplexer STM-16
Short Description:
| Specifications | |
| OSN 1500B | OSN 1500A |
| Dimensions (H x W x D) | |
| 221 mm x 444 mm x 263 mm | 131 mm x 442 mm x 224 mm |
| Service Slots | |
| 12 for processing boards and 4 for interface boards | 10 slots for processing boards |
| Switch Capacity | |
| Packet: 8 Gbit/sTDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order) | Packet: 8 Gbit/sTDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order) |
| Networking Modes | Pure packet, hybrid (packet + SDH) or SDH networkingWDM networkingSingle fiber bi-directional transmission |
| Power Supply | -48V DC/-60V DC, 110V AC/220V AC (external module) |
| Supported Interfaces | OTN interfaces: OTU-3 (40G, compliant with OTL3.4 standard) Ethernet interfaces: FE/GE/10 GESDH interfaces: STM-1/4/16/64PDH interfaces: E1/E3/E4, T1/T3/T4ATM interfaces: E1, STM-1WDM interfaces: 40 DWDM wavelengths, compliant with ITU-T G.694.1; 8 CWDM wavelengths, and compliant with ITU-T G.694.2PCM interfaces: FXS/FXO, 2/4 wire audio and E&M, G.703 64K co-directional interface, V.35/V.24 (sync/async RS232)/X.21, RS449 (RS423A/RS422A)/RS530/RS530A/RS485, and IEEE C37.94 |
